Description
Brand: STAIGO
Color: Black
Characteristics:

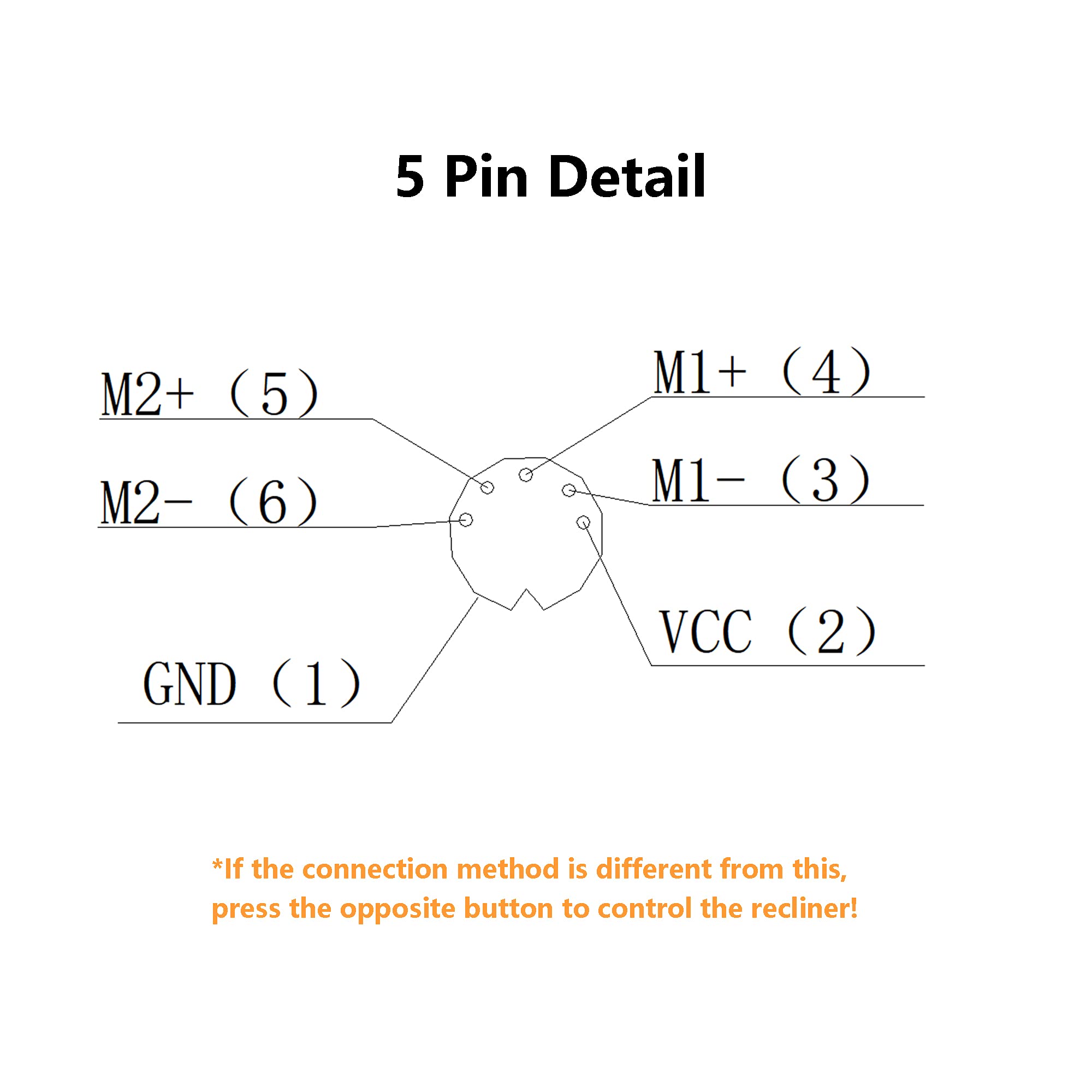

- Use the 5-pin connector that fits most handsets.
- Includes touch buttons model 500446 and control box model HC227.
- As a replacement for KD Kaidi touch sensor KDH-020.
- Compatible with most recliner brands such as Limoss, Okin, Kaidi...This hand control is not compatible with recliners with a control box!
- 12-month warranty service, 24*7 email support. We will do our best to solve any product issues for you!
Model number: 4Touch
Item number: 4Touch
Details: Product descriptions
Technical parameters:
Nominal voltage: 29V
Rated current: 1.8A
Length: approx. 243 cm
User guidance:

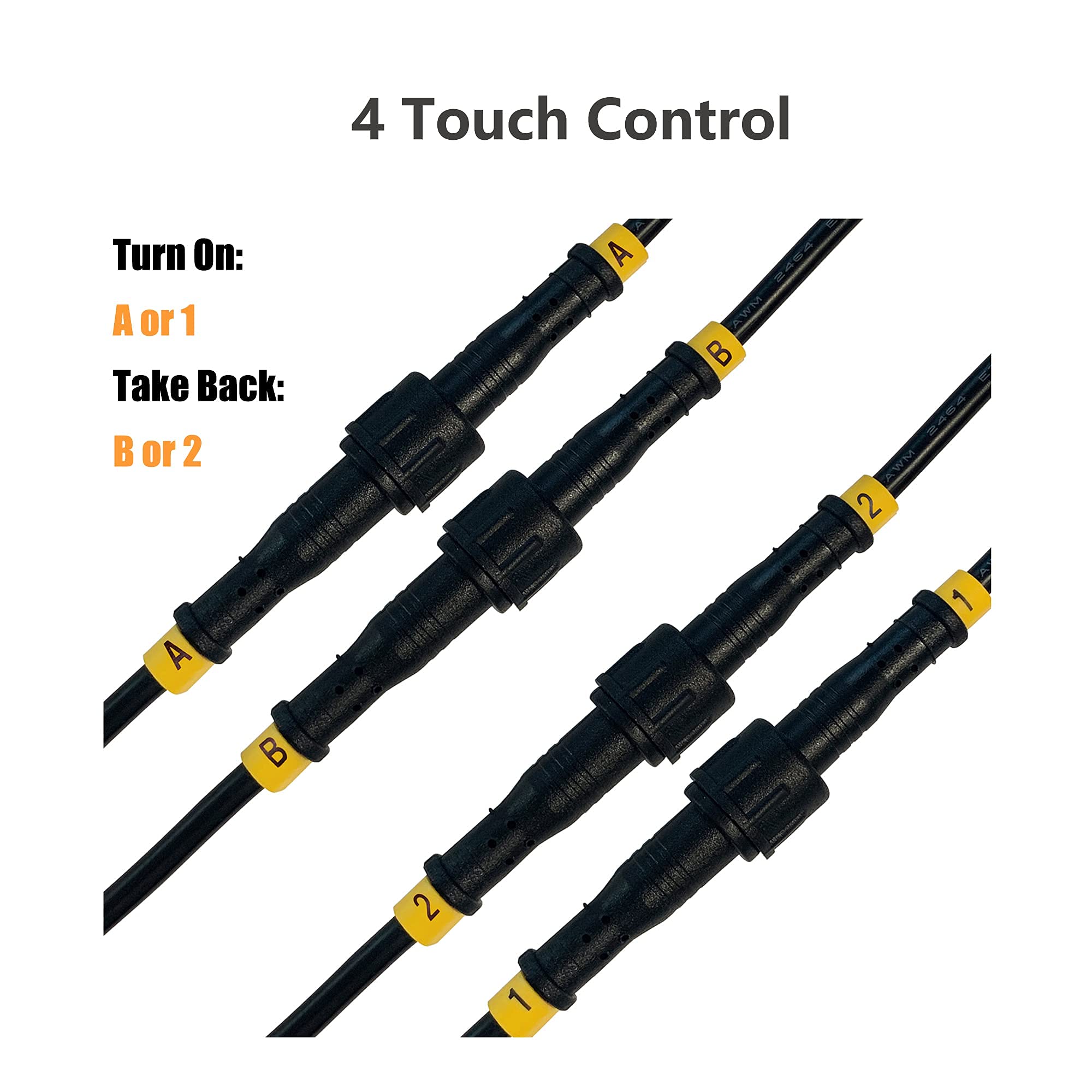

1. Turn on the engine
Touch the button to open the motor (A or 1), and the motor will continue to extend until it stops at the furthest point. If the touch is stopped during the touch, the motor will also stop extending.
2. Take the engine back
Touch the button to retract the motor (B or 2), and the motor will continue retracting until it stops at the furthest point. If the touch is stopped during the retraction, the motor will also stop the retraction process.
Note: The above operating instructions apply to clockwise motor rotation. If the motor is running counterclockwise, press (button B or 2) to turn ON, then press (button A or 1) to turn back.
As a reminder:

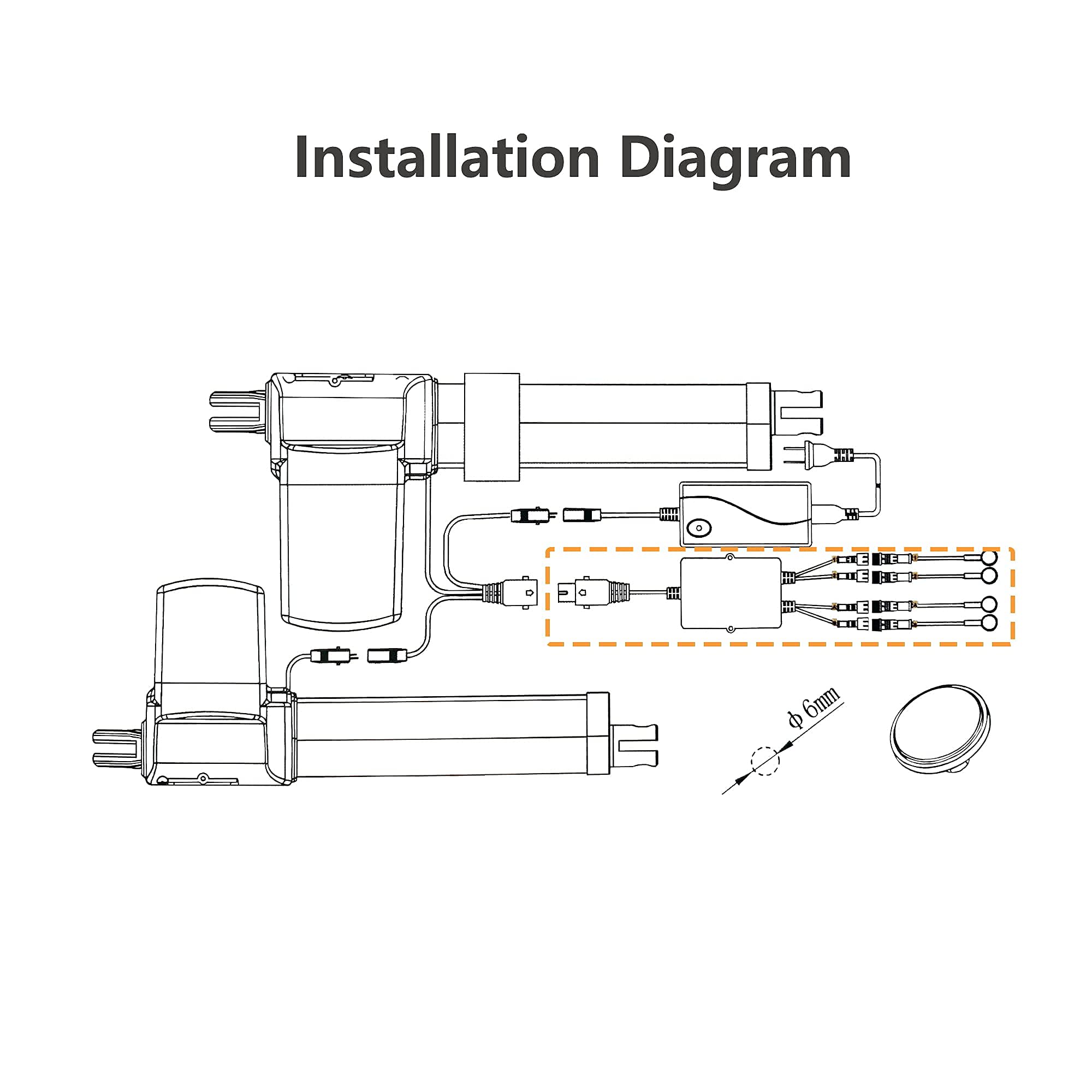

1. When installing these control components, you must confirm the applicable power supply model and check the line connection according to our connection diagram, otherwise some parts may be damaged due to improper connection.
2. If the product fails, please contact our customer service regarding your rights and do not disassemble it for repair without authorization.
3. Please unplug the main power supply if not in use for a long time.
Installation tips:

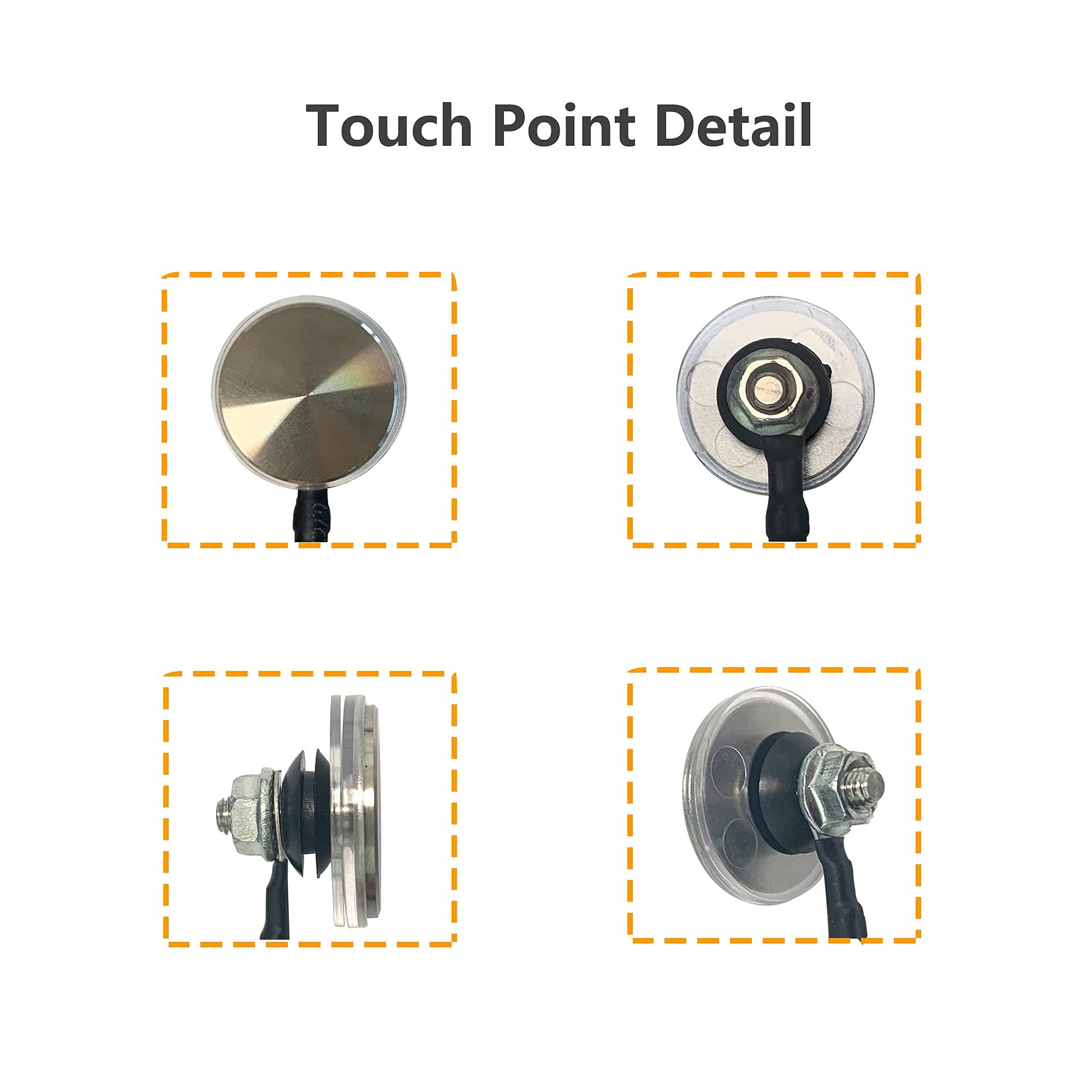

1. The leather hole is 6 mm and the product is inserted into the leather hole.
2. Apply the anti-losing adhesive to the gasket and tighten the connecting wire screws.

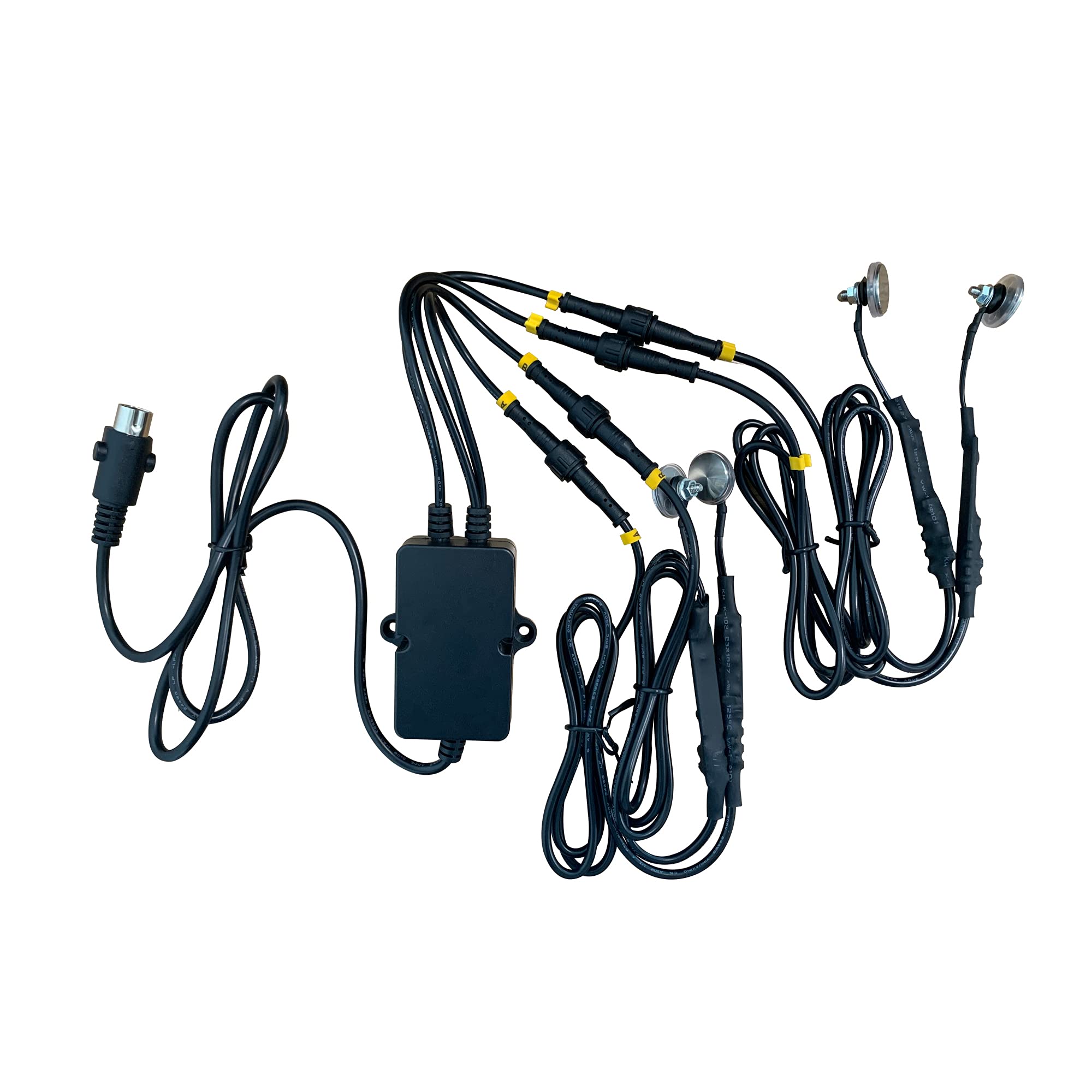

Package includes:

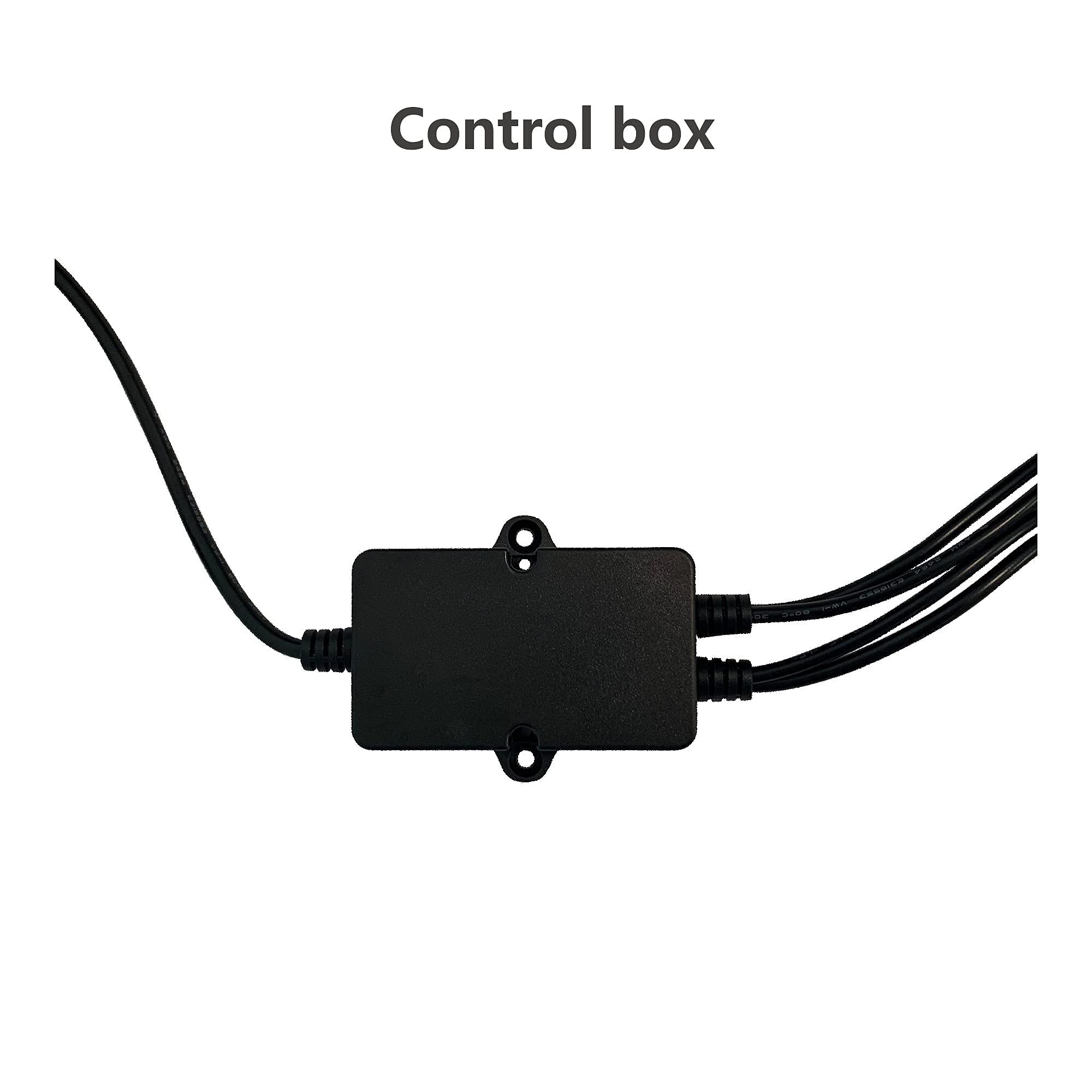

Control box x 1
Touch controller x 4
Mounting screws x 2
Warnings
Before installing these control components, please insist on confirming the correct power supply model and checking the wiring according to our wiring diagram to avoid damage due to improper connection. When not in use, the main power supply should be disconnected. Please note that improper operation may damage the motor.
EAN: 0681413272750
Package dimensions: 7.4 x 3.8 x 3.1 inches
