Description
Brand: MCH
Color: Black
Characteristics:
- Made of high-impact and shock-resistant polypropylene - standard EN 1253-1
- Installation depth: 171 mm
- DN-110

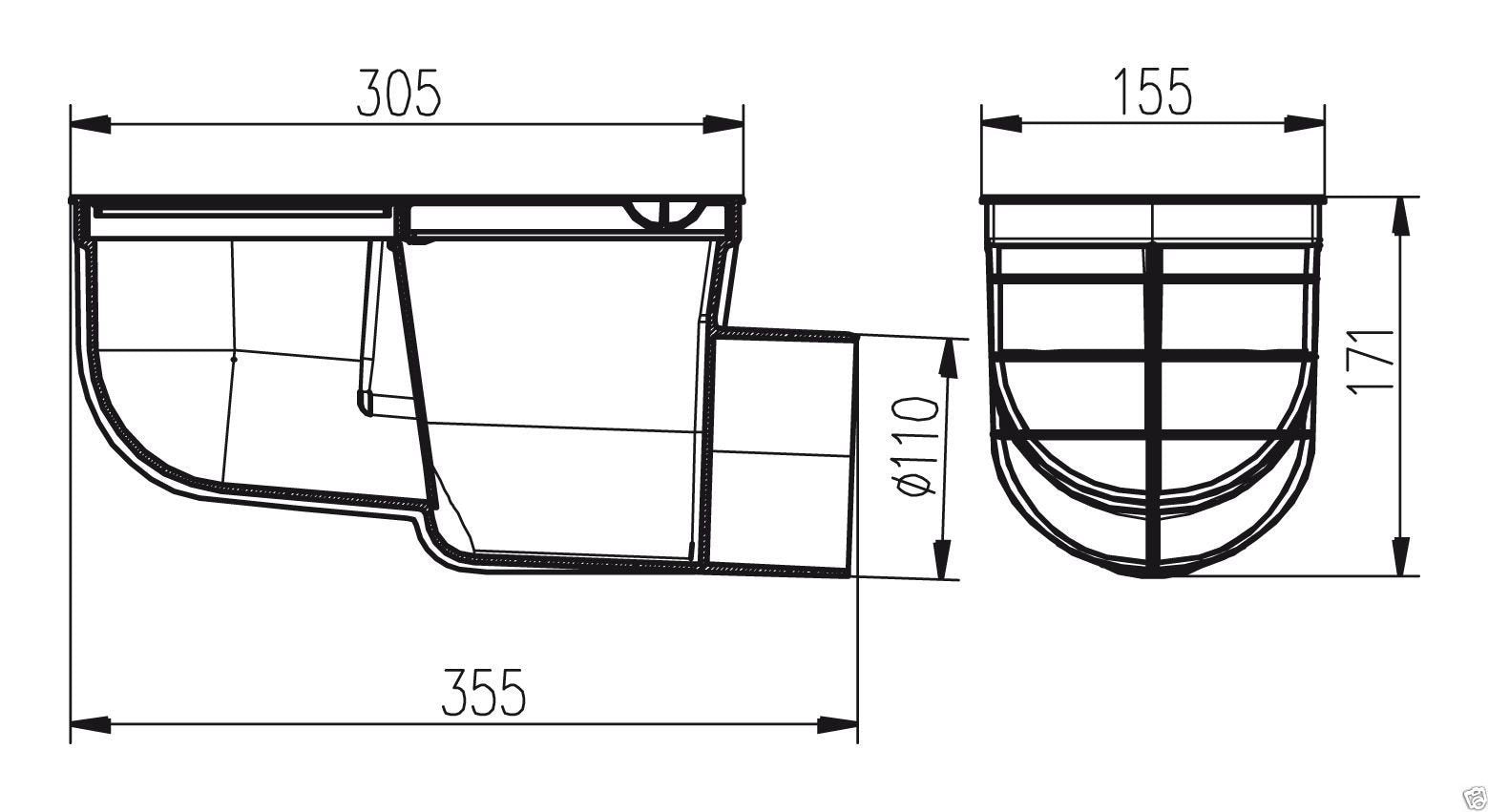

- Dimensions: 305 x 155 x 171 mm
- Weight: approx. 1.14 kg
- Load K3-300 kg
- Heat resistance up to 90 °C
- Flow rate: 375 l/min.
- Frost-proof, as it runs empty due to the sloping flowing base
- With integrated dry swing flap as odor stop
Binding: Tool
Release date: 07-05-2019
Model number: 325 D
Item number: 325 D

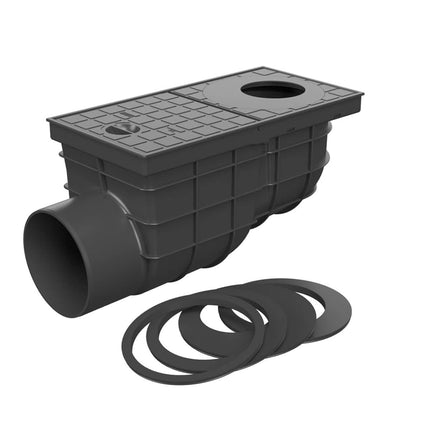

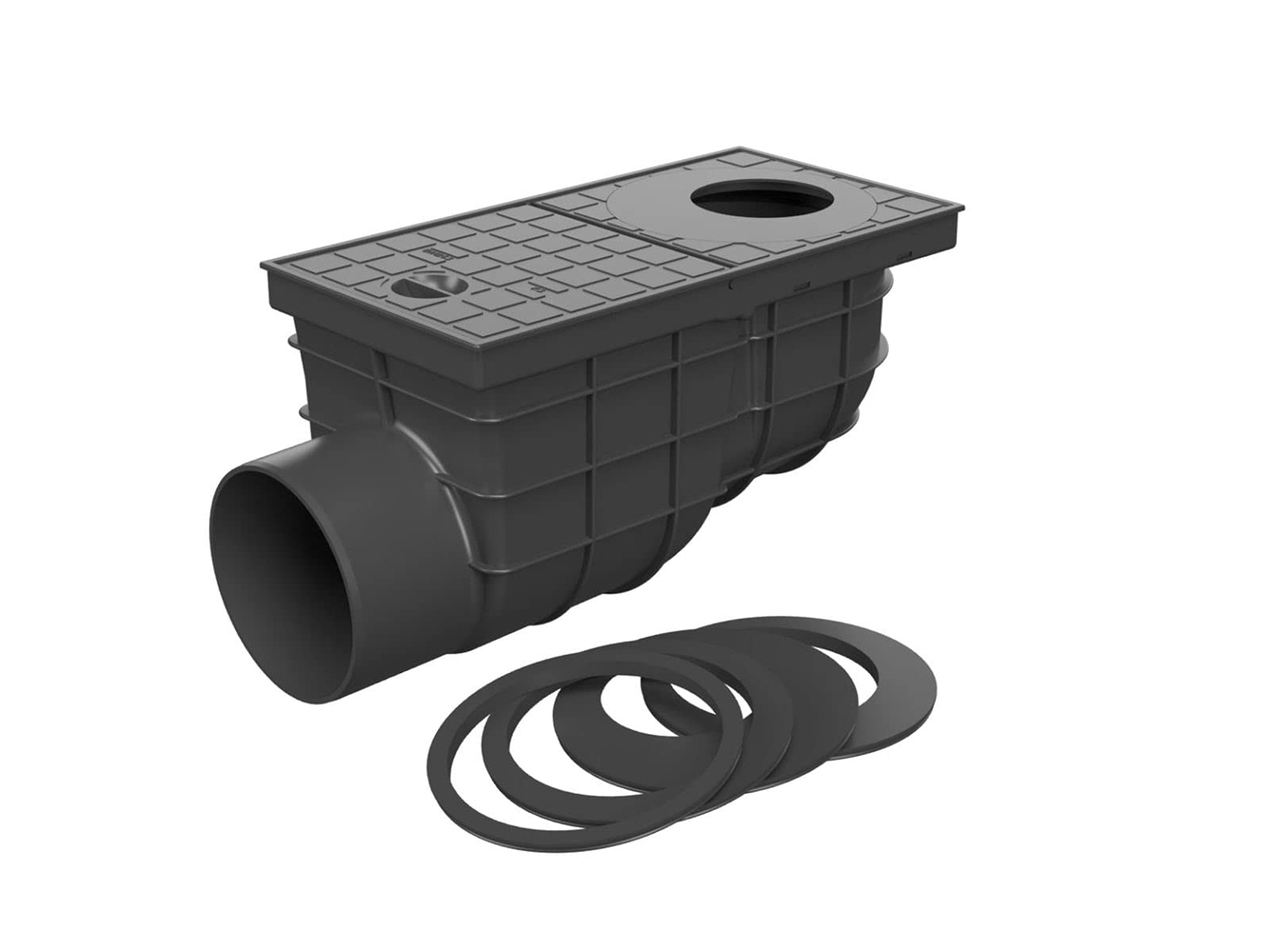

Details: Rain gully - Gutter drain - Downpipe drain
in the highest manufacturing quality.
Order No.: 325-D
Safety and ISO certified by TÜV Süd. Horizontal outlet - DN 110, suitable for 100 mm HT and KG pipes. Suitable for all downpipes 75-80-90-100-110 and 125 mm thanks to various ring inserts (Figure 1). The ring inserts are held eccentrically, so that the downpipe does not have to be exactly centered by turning the inserts. This makes it easy to compensate for inaccuracies in the downpipe. The inserts are ready-to-use, meaning you don't have to laboriously cut out the correct size with a knife. Made of polypropylene - standard EN 1253-1. Load capacity K3-300 kg. Heat resistance up to 90 °C. Flow rate: 375 l/min. Frost-proof due to the sloped flow base. With integrated pendulum flap as an odor stop. With dirt trap and cleaning opening for easy cleaning, possible without dismantling the downpipe. The rain gully is suitable for draining rainwater from roof or surface drainage. The discharge of other liquids is not permitted. Leaf trap and odor barrier. Installation depth: 171 mm. Installation instructions are included. #supremeWidgetFooter216725 {padding: 5px 0px 0px 0px; font-family: Arial, Helvetica, sans-serif;}
#supremeWidgetFooter216725 p { float: left; font-size: 8px; color: #FFF; margin: 0px; padding: 5px 0px 0px 0px;}
#supremeWidgetFooter216725 a,#supremeWidgetFooter216725 a:visited {font-size: 12px !important; text-decoration: none;}
#supremeWidgetFooter216725 a:hover {text-decoration: underline;}
#supremeWidgetFooter216725 img {float: right;}#supremeWidgetFooter216726 {padding: 5px 0px 0px 0px; font-family: Arial, Helvetica, sans-serif;}
#supremeWidgetFooter216726 p { float: left; font-size: 8px; color: #FFF; margin: 0px; padding: 5px 0px 0px 0px;}
#supremeWidgetFooter216726 a,#supremeW
EAN: 8595587400739
Package dimensions: 14.1 x 7.5 x 6.3 inches
