Description
Brand: MCH
Color: Black
Characteristics:

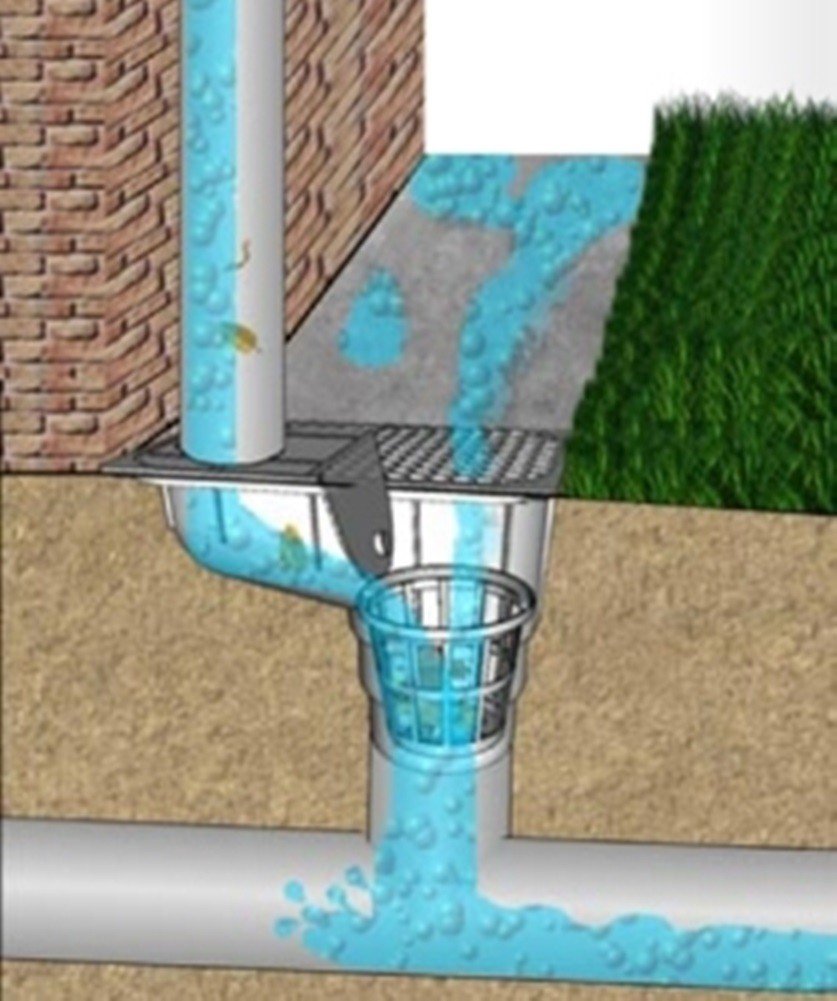

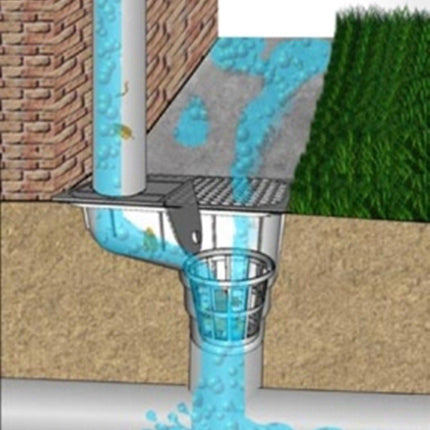

- Suitable for draining rainwater from roof or surface drainage into outdoor sewer systems

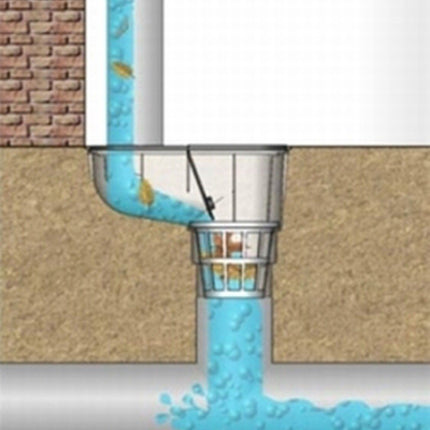

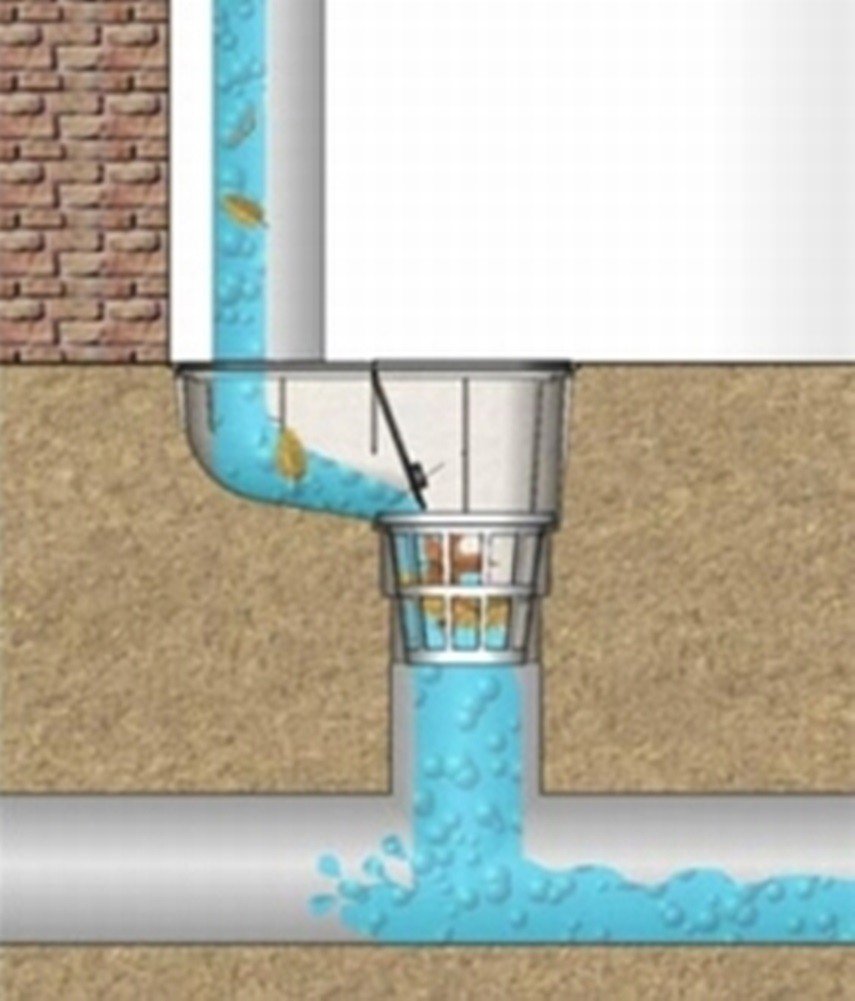

- The mechanical odor trap flap prevents odors from escaping from the sewer line
- Various supplied ring inserts allow connection to downpipes with a diameter of 75/ 80/ 90/ 100/ 110 and 125 mm

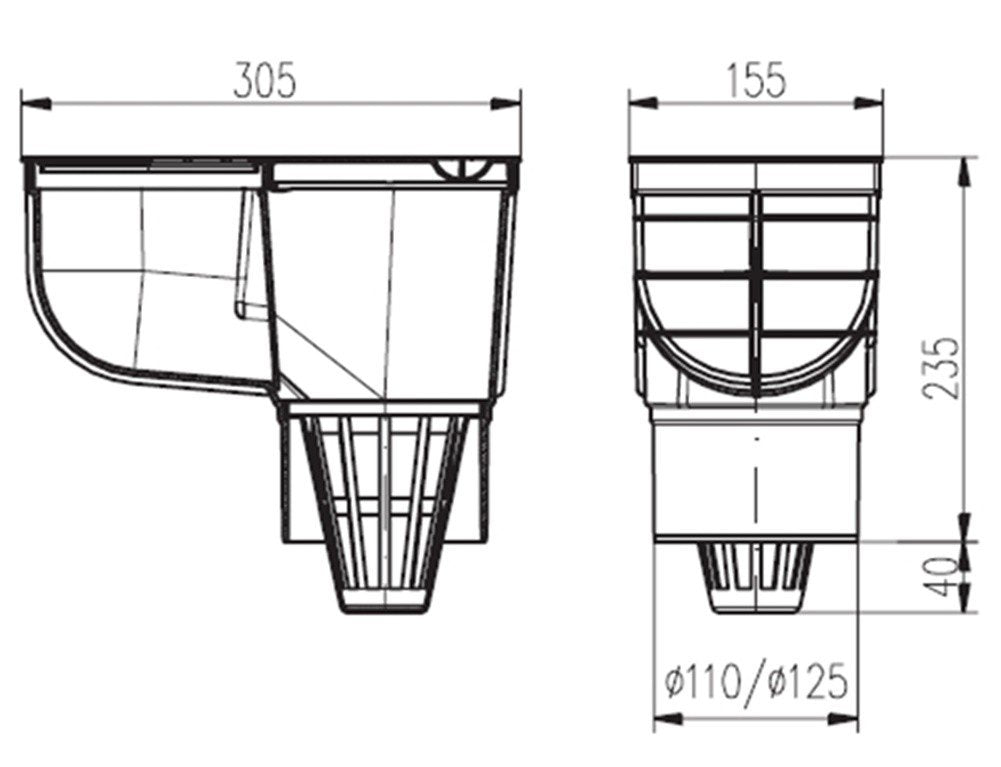

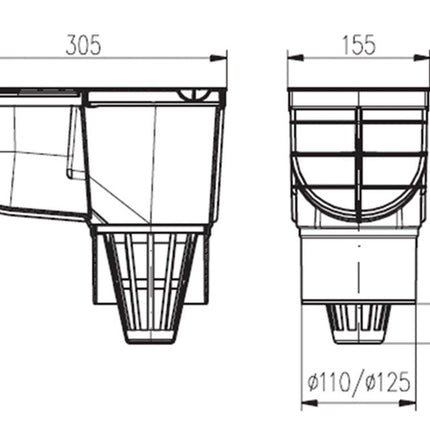

- Dimensions: 305 x 275 x 155 mm | Weight: 1.05 kg | Flow rate: 390 l/min
- Made of polypropylene - EN 1253-1 | Heat resistance up to 90 °C | Load capacity: K3-300 kg
Binding: Tool
Release date: 07-05-2019
Model number: 584
Item number: 584

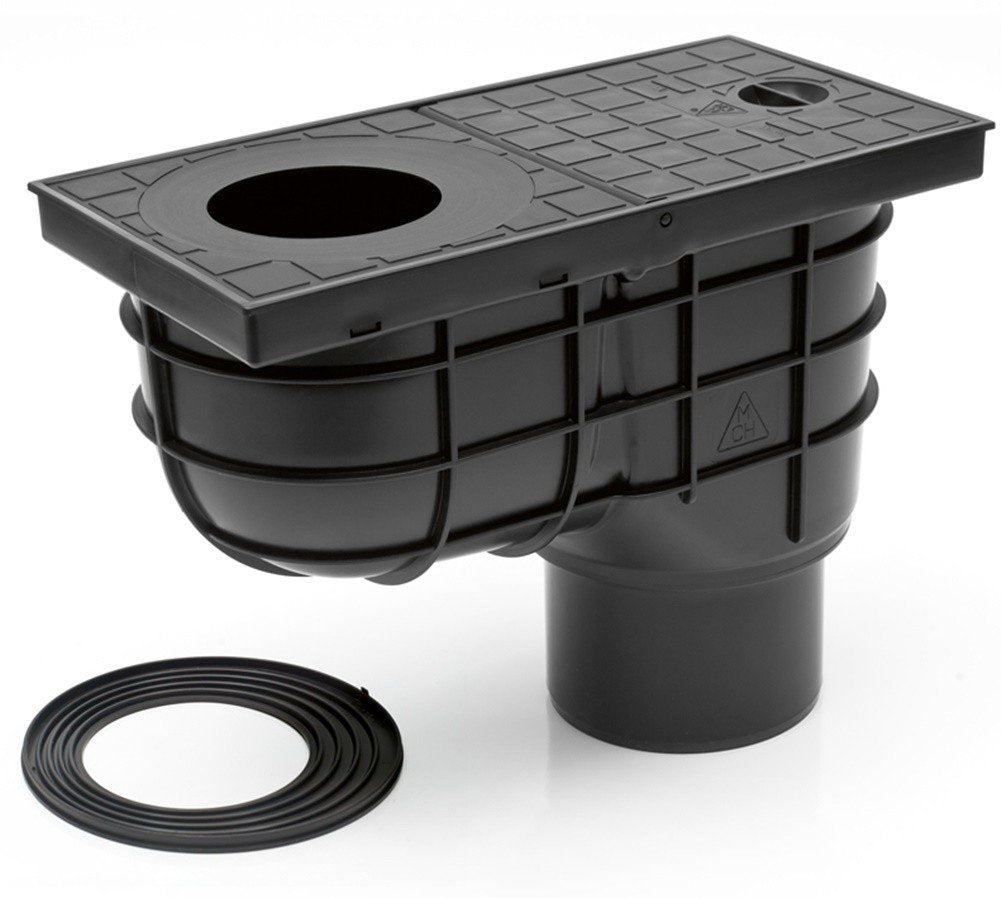

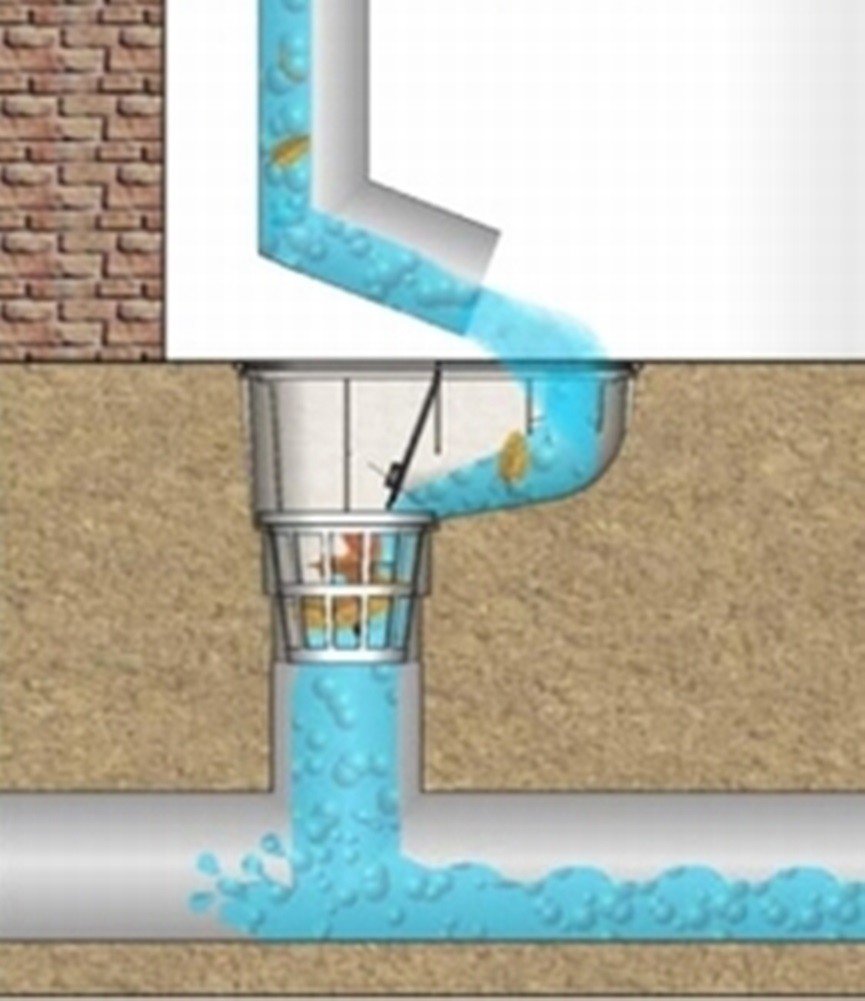

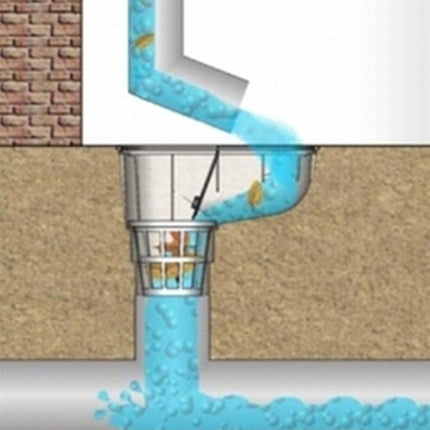

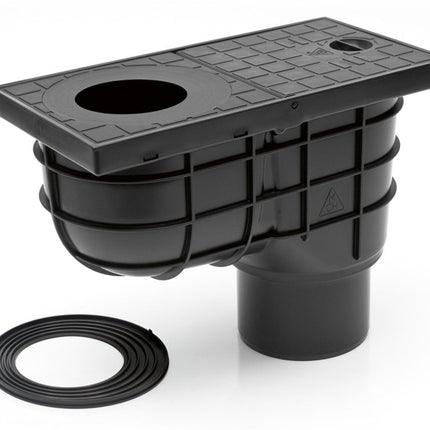

Details: This product is designed for draining rainwater (surface) into outdoor sewer systems and allows for the connection of downpipes. It includes a mechanical odor trap flap that prevents odors from escaping from the sewer line. The advantage of this design is its low installation height. The product has a horizontal outlet DN 110 mm. The eccentric downpipe cover of the STANDARD design is designed for cutting into nominal profiles of 75, 80, 90, 100, 110, and 125 mm. This drain box version includes rings with nominal diameters of 75, 80, 90, 100, 110, and 125 mm. Made of PP and PS with UV stabilization. Load capacity K3–300 kg, heat resistance up to 90°C, tested according to EN 1253.
EAN: 8595587403921
Package dimensions: 12.2 x 9.8 x 6.4 inches
