Description
Brand: Surecom
Color: Black
Characteristics:
- Works with most common walkie-talkies. Multi-LED display, 2 radio statuses, and controller battery status.
- Real-time duplex repeater with link radio. Allows the user to change the DTMF remote control password over the air.
- Works with two built-in Li-ion batteries with a running time of 72 hours.
- External DC 5V power supply. Low power consumption by professional manufacturer.
- Two modes to choose from. Including 2 * 2 pins of a 46k connecting cable
Binding: Electronic
Model number: SR-629
Item number: SR-629

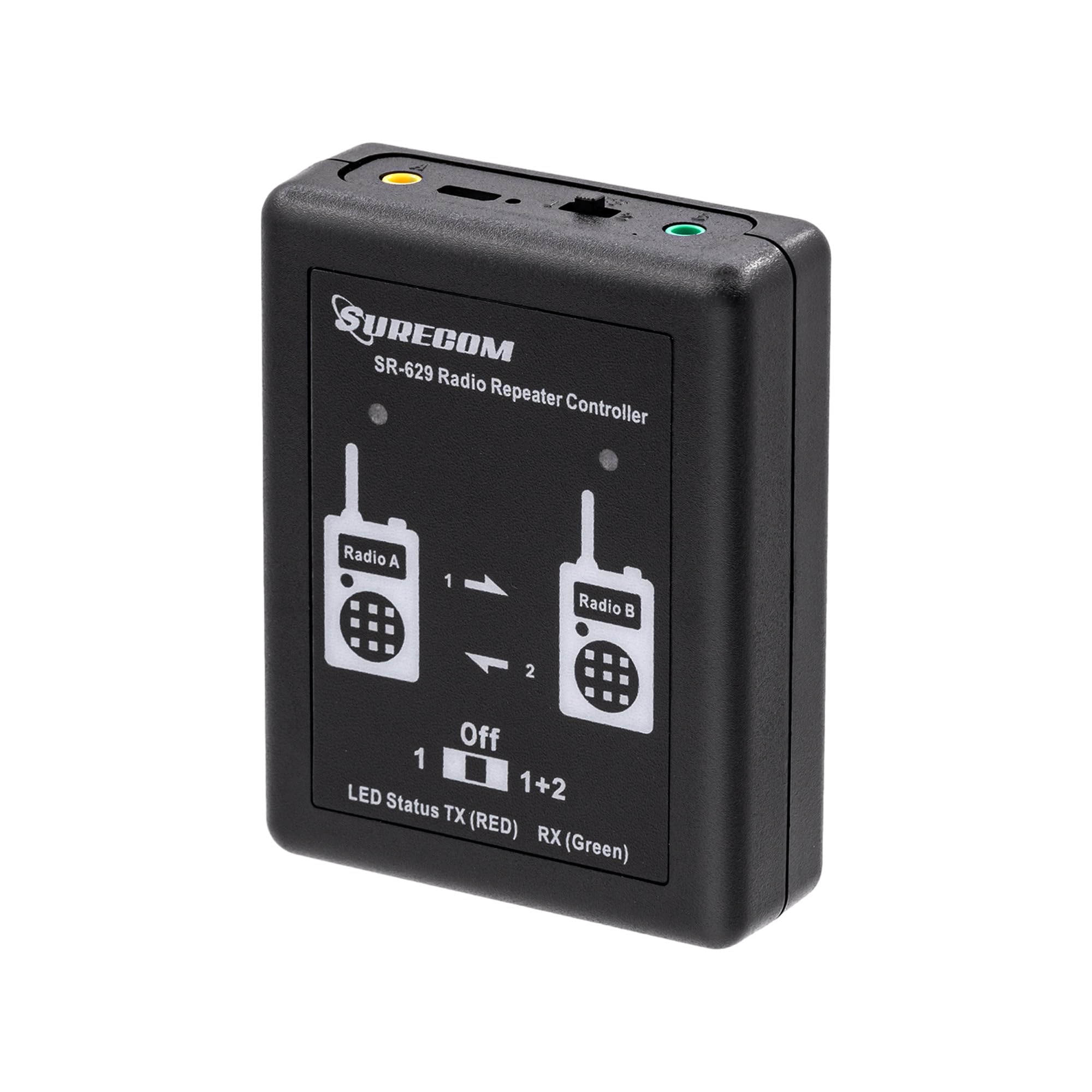

Details: The SR-629 is a multifunctional and affordable repeater that extends the range of any handheld radio or walkie talkie.
Equipped with the new generation of trunk line board, the internal structure is more delicate and the external appearance is more attractive.
In addition to the basic scanning and repeater function that follows the transmitter of the receiver, the Simple connection offers the more ideal 2-way radio talk region for you, which maintains the connection in a larger operating area.
When the radio units are connected, the received signal on one radio unit is transmitted to the other radio unit in real time. e.g. VHF/VHF, UHF/UHF, VHF/UHF or UHF/VHF modes

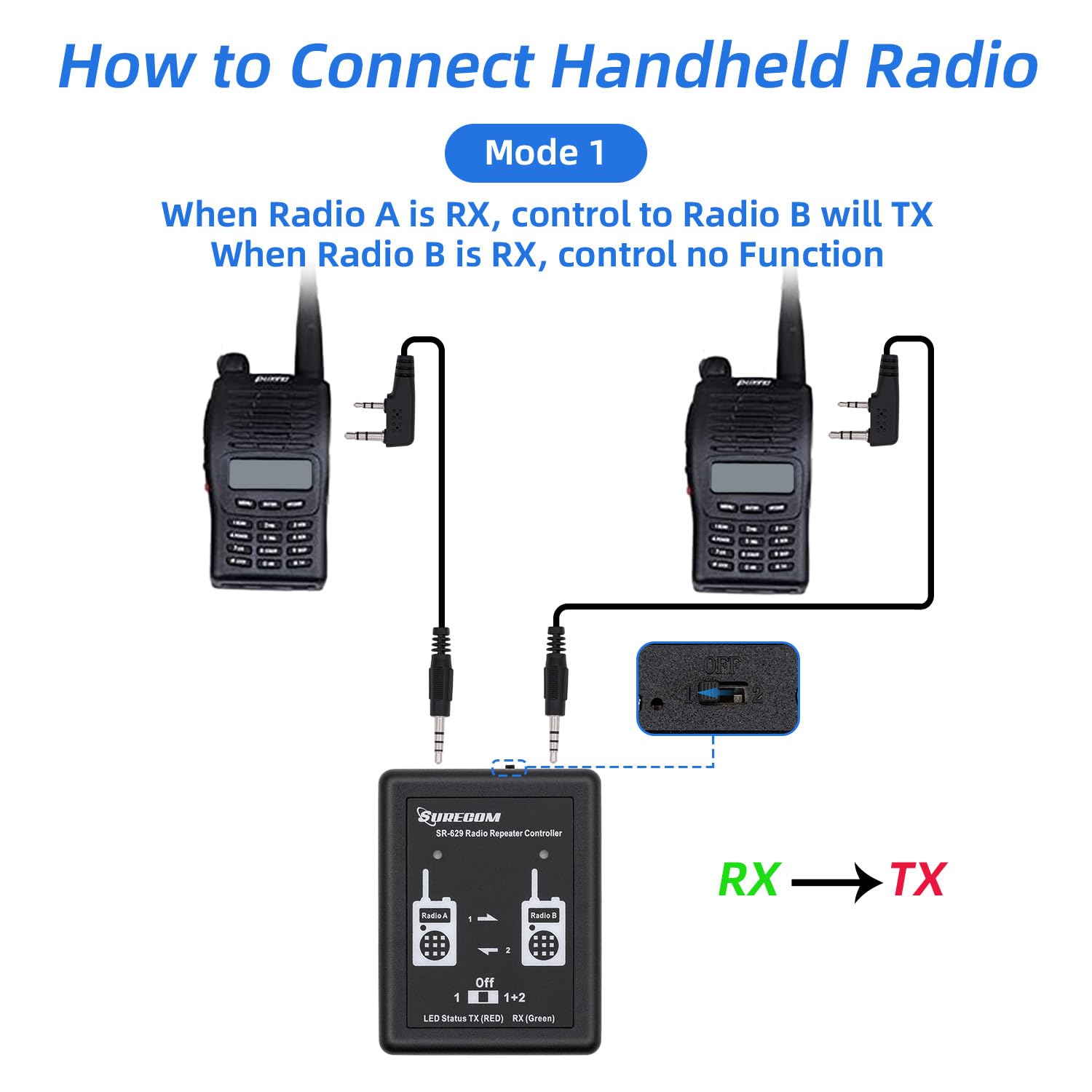

Mode 1: When Radio A is RX, the controller sends to Radio B.
When Radio B is RX, no function is controlled.
Mode 2 : When Radio A is RX, the controller sends to Radio B.
When Radio B is RX, the control of Radio A transmits.

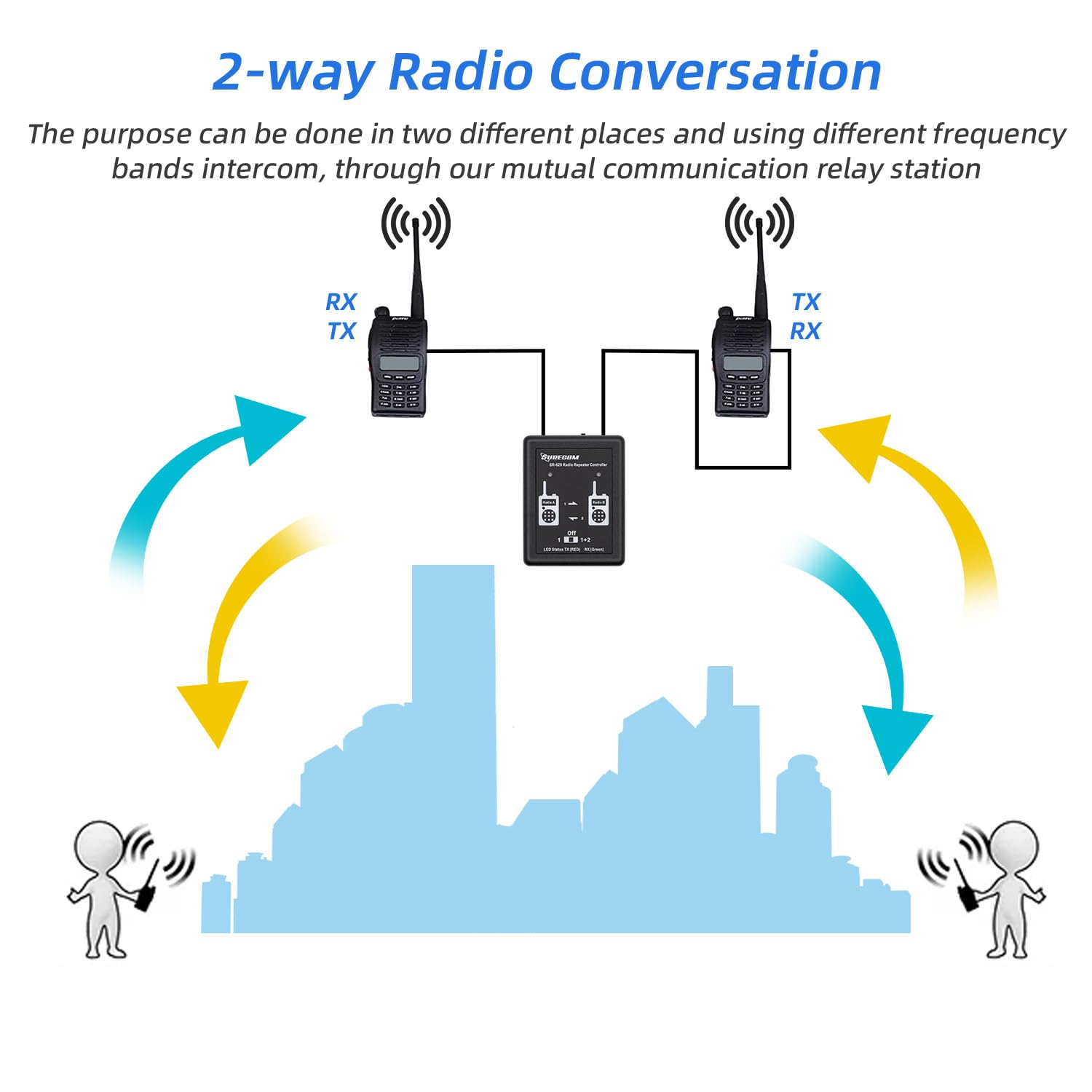

The repeater can be deployed at two different locations and using different frequency bands via our relay station for mutual communication.
This is a radio crossband duplex repeater controller. It is an easy-to-use, cost-effective, and highly flexible platform for building bidirectional crossband duplex repeaters for walkie-talkies and handheld radios.

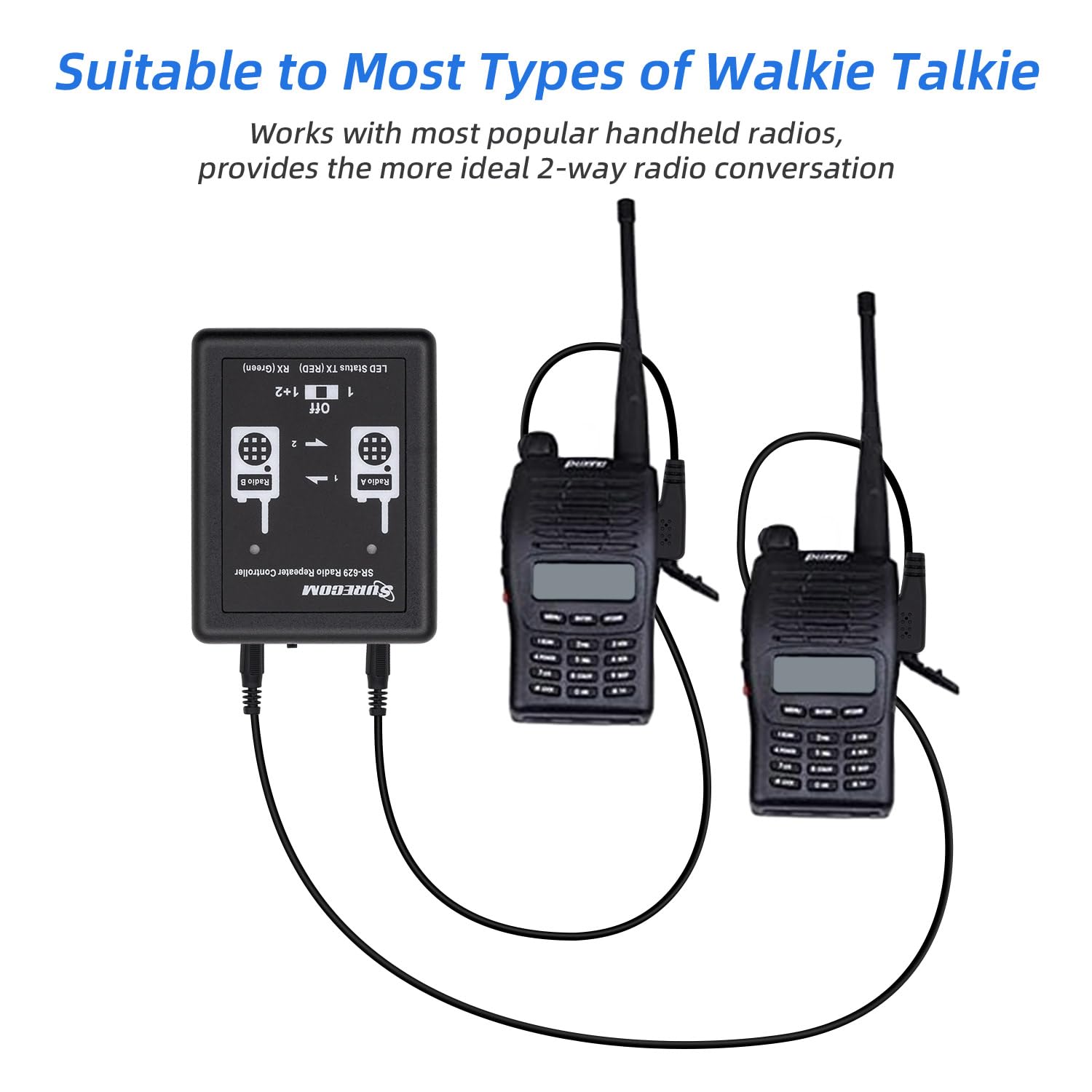

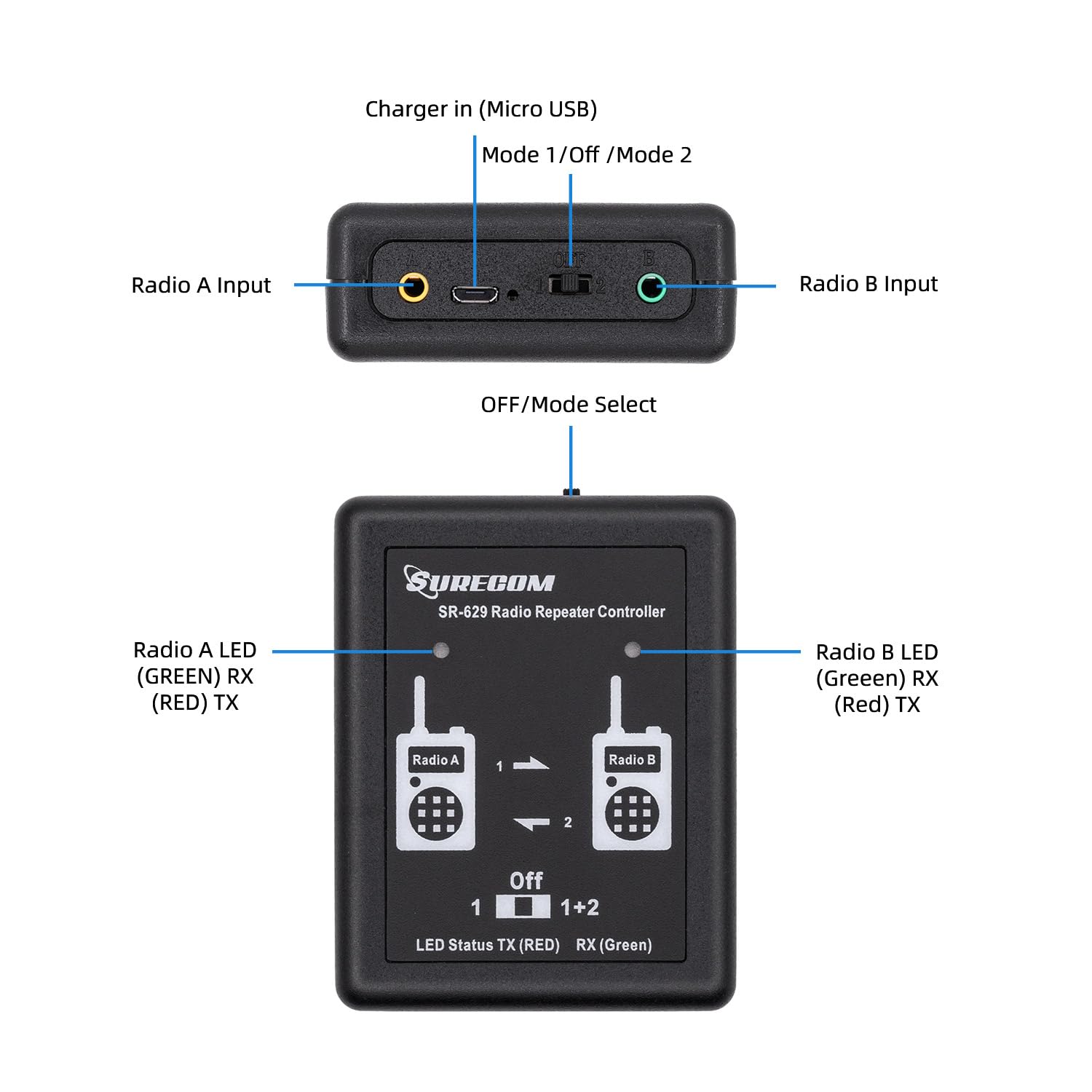

The SR-629 has 2 audio inputs and outputs that are used to connect to walkie talkies and handheld radios.

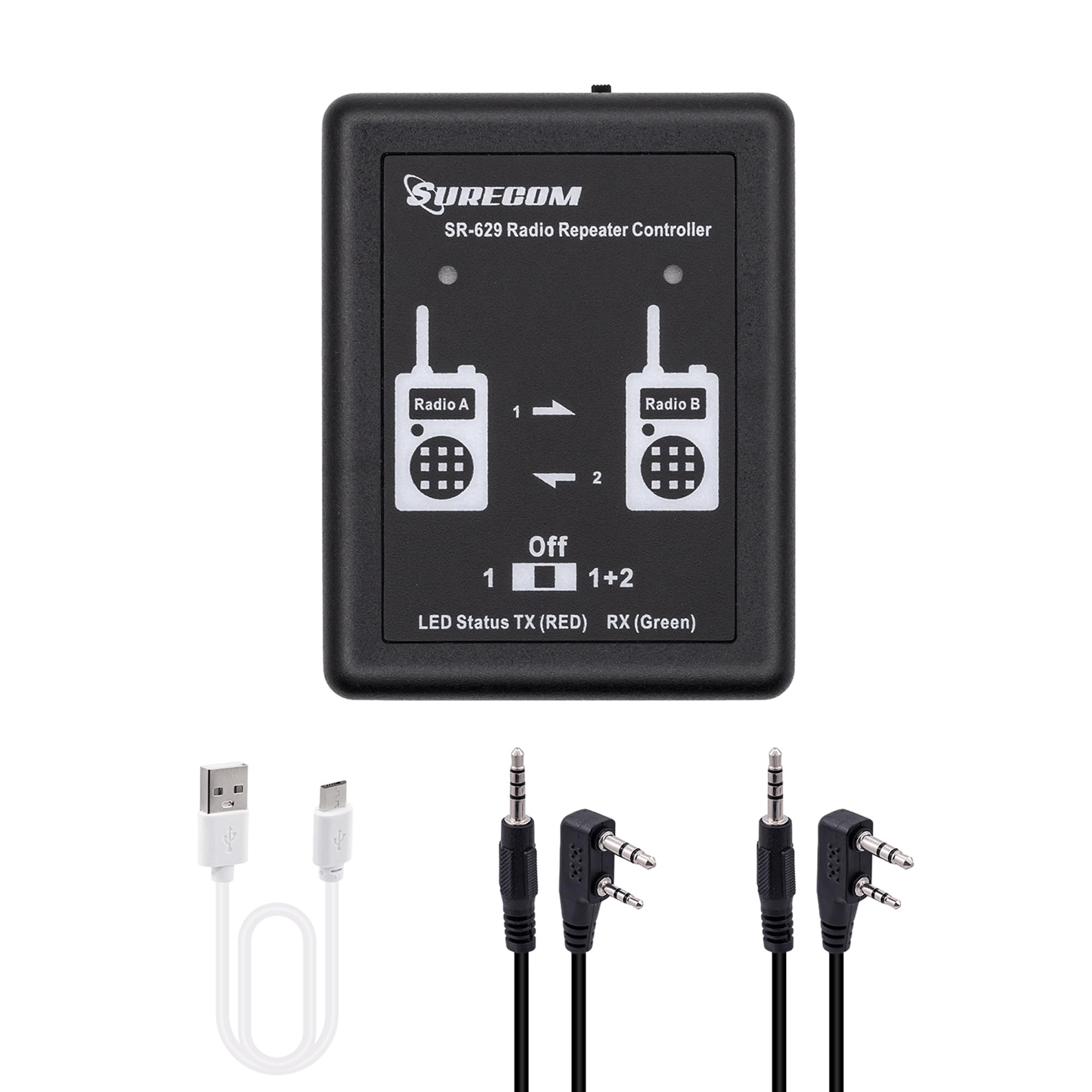

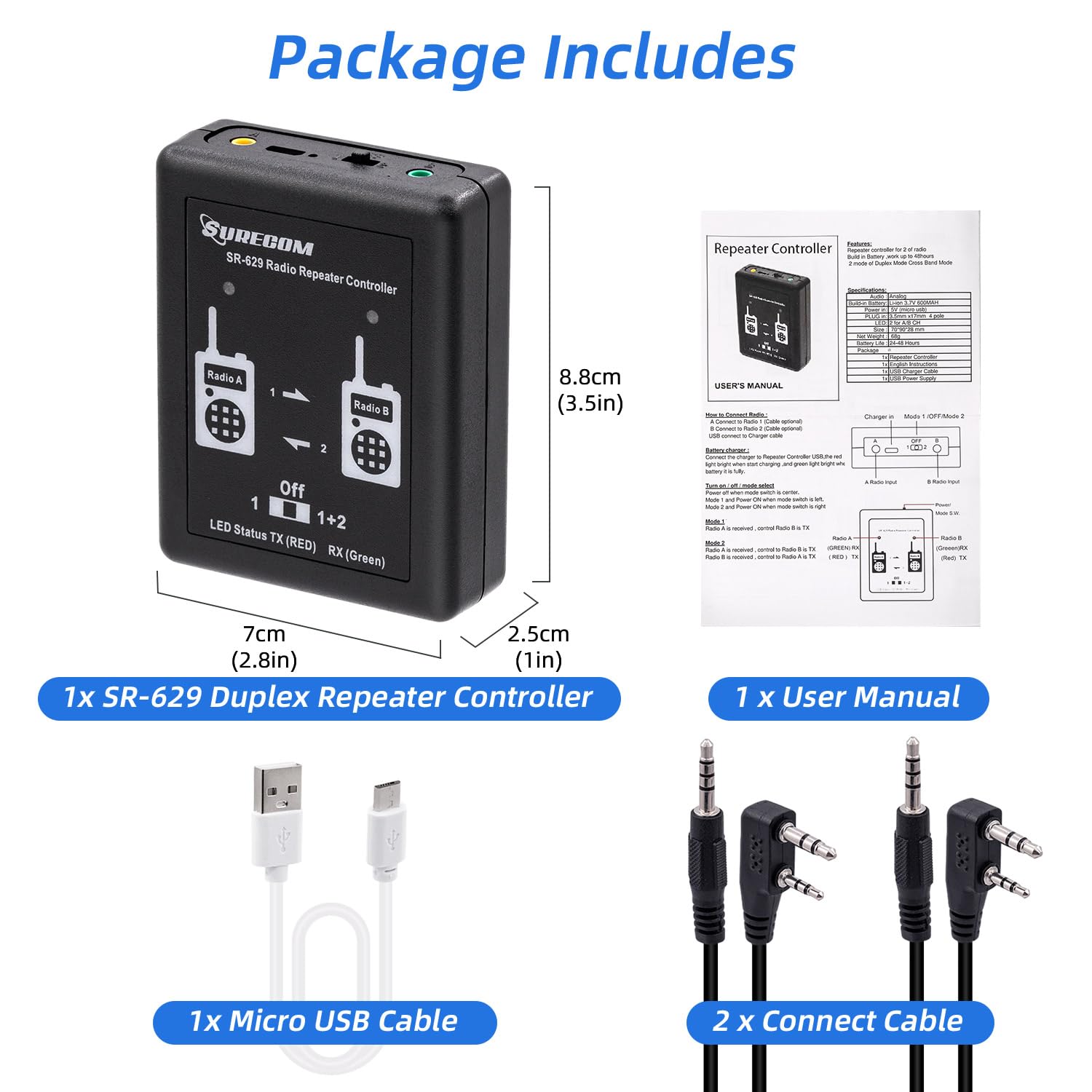

Contents of the package
1x SR-629 Duplex Repeater Controller
2x K1 connector cables
1x English user manual
1x USB charging cable
1x USB power supply 100-240V
EAN: 0049008699700
Package dimensions: 7.2 x 4.9 x 1.9 inches
