Description
Brand: Uzman
Color: Black
Characteristics:

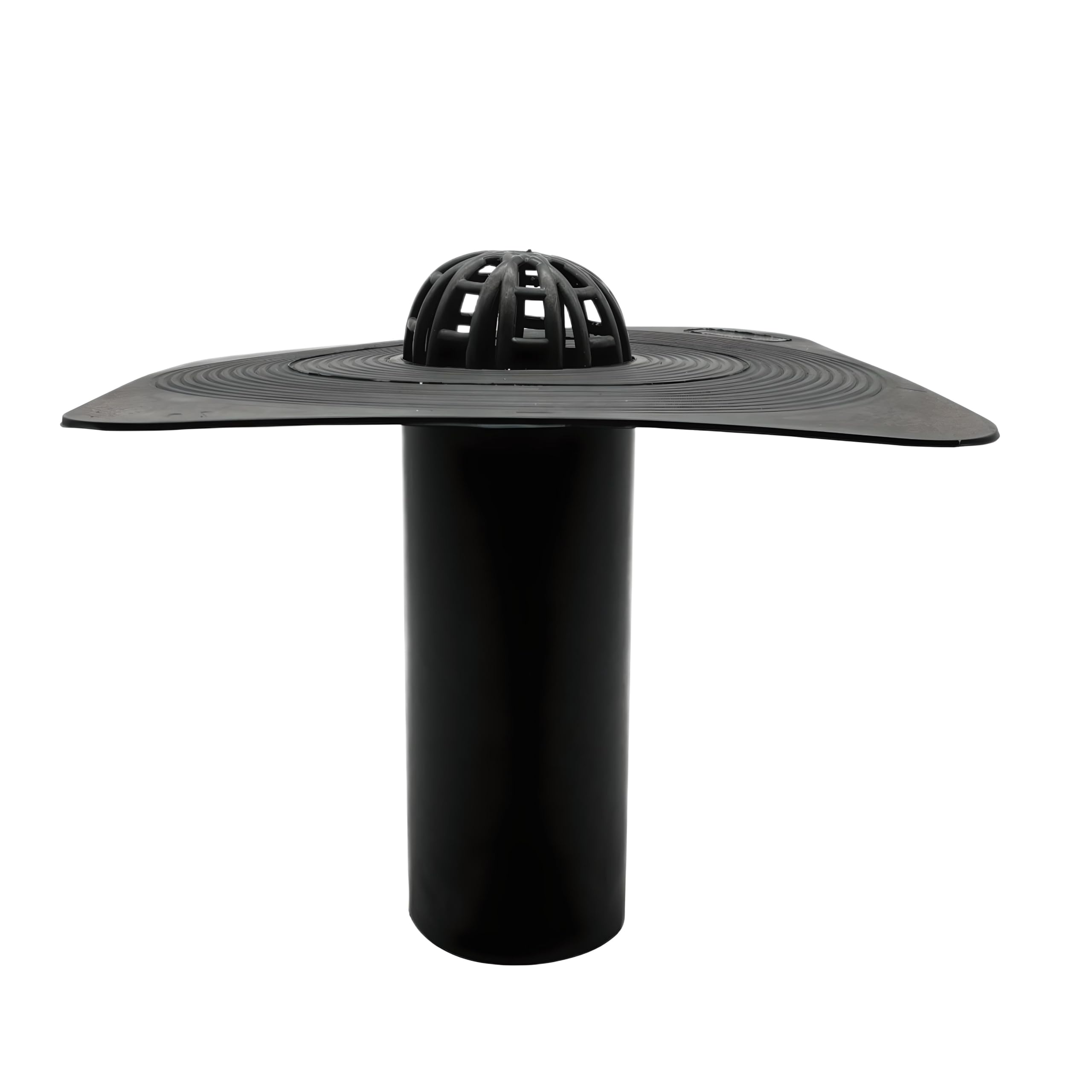

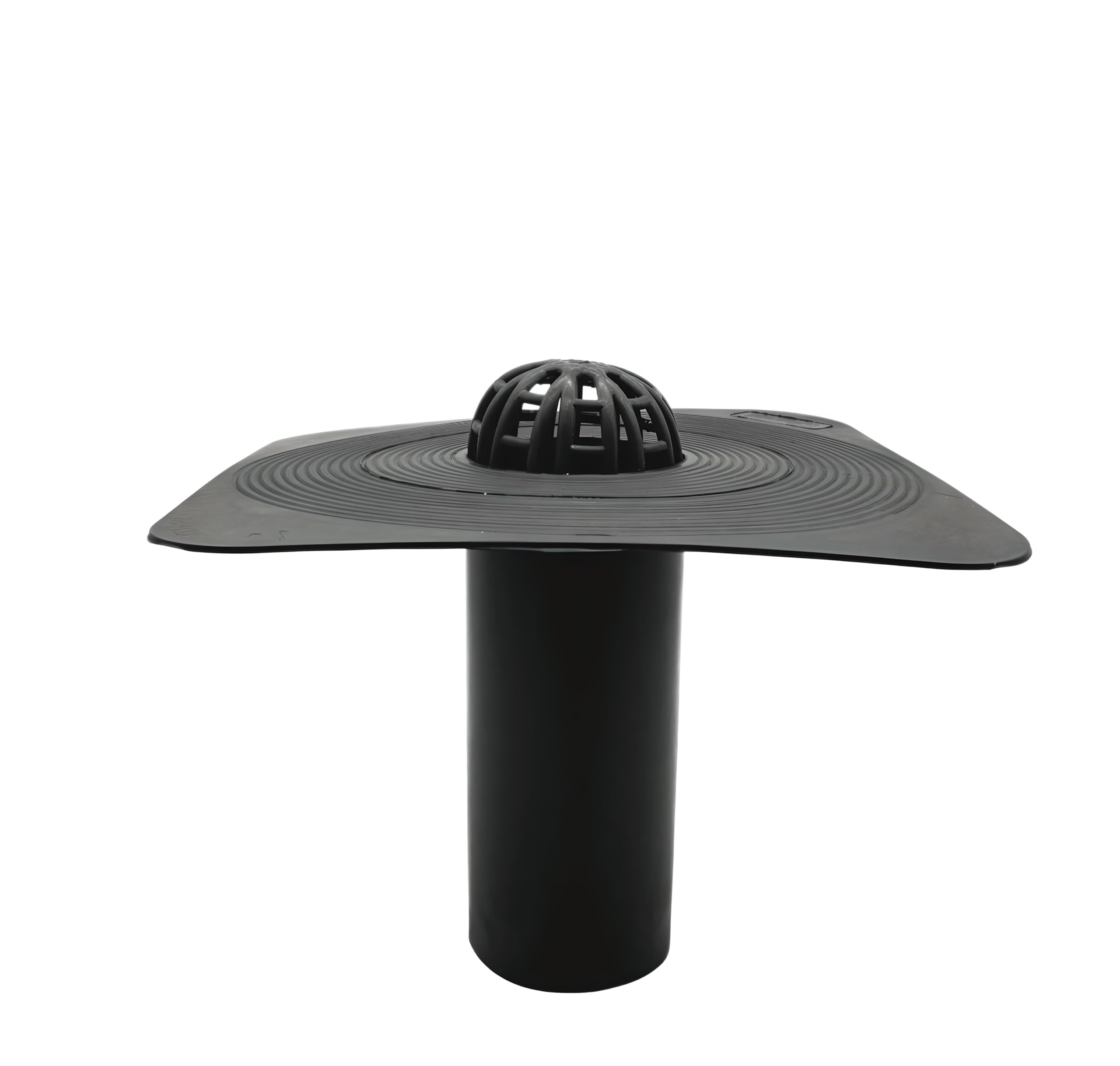

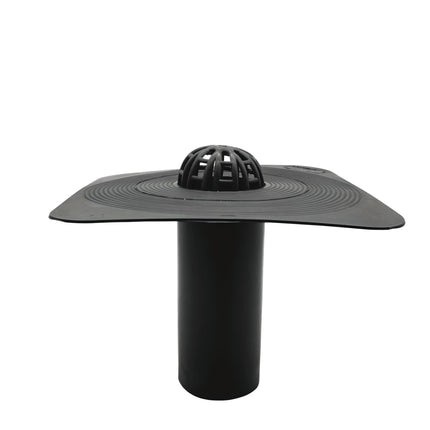

- ✅Efficient drainage solution: Flat roof drain in various nominal sizes from DN50 to DN150
- ✅Versatile: Suitable for balconies, garages, carports, flat roofs, rainwater and roof drainage
- ✅Robust material: Made of durable special hard PVC, this roof drain offers a durable and high-quality construction for reliable use.

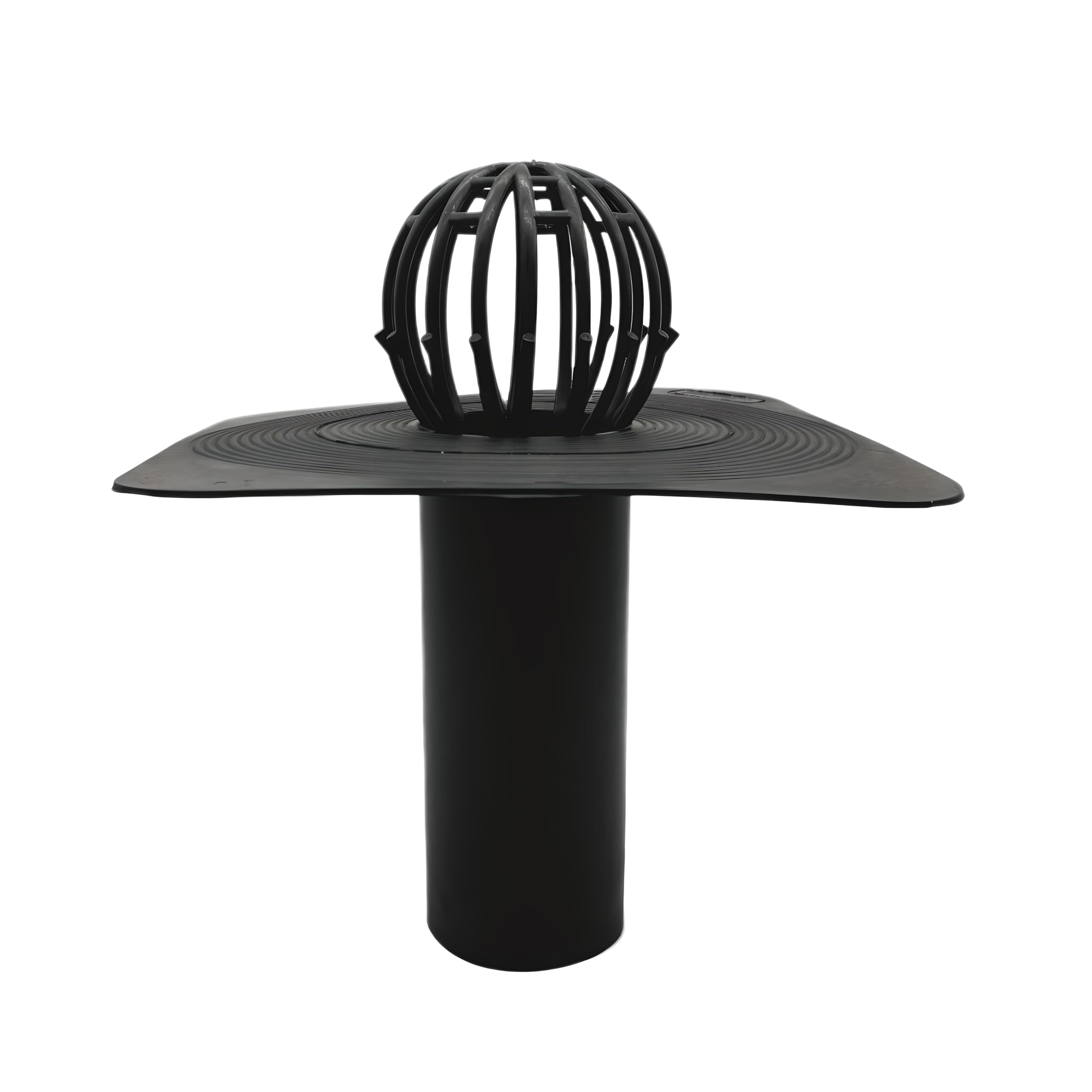

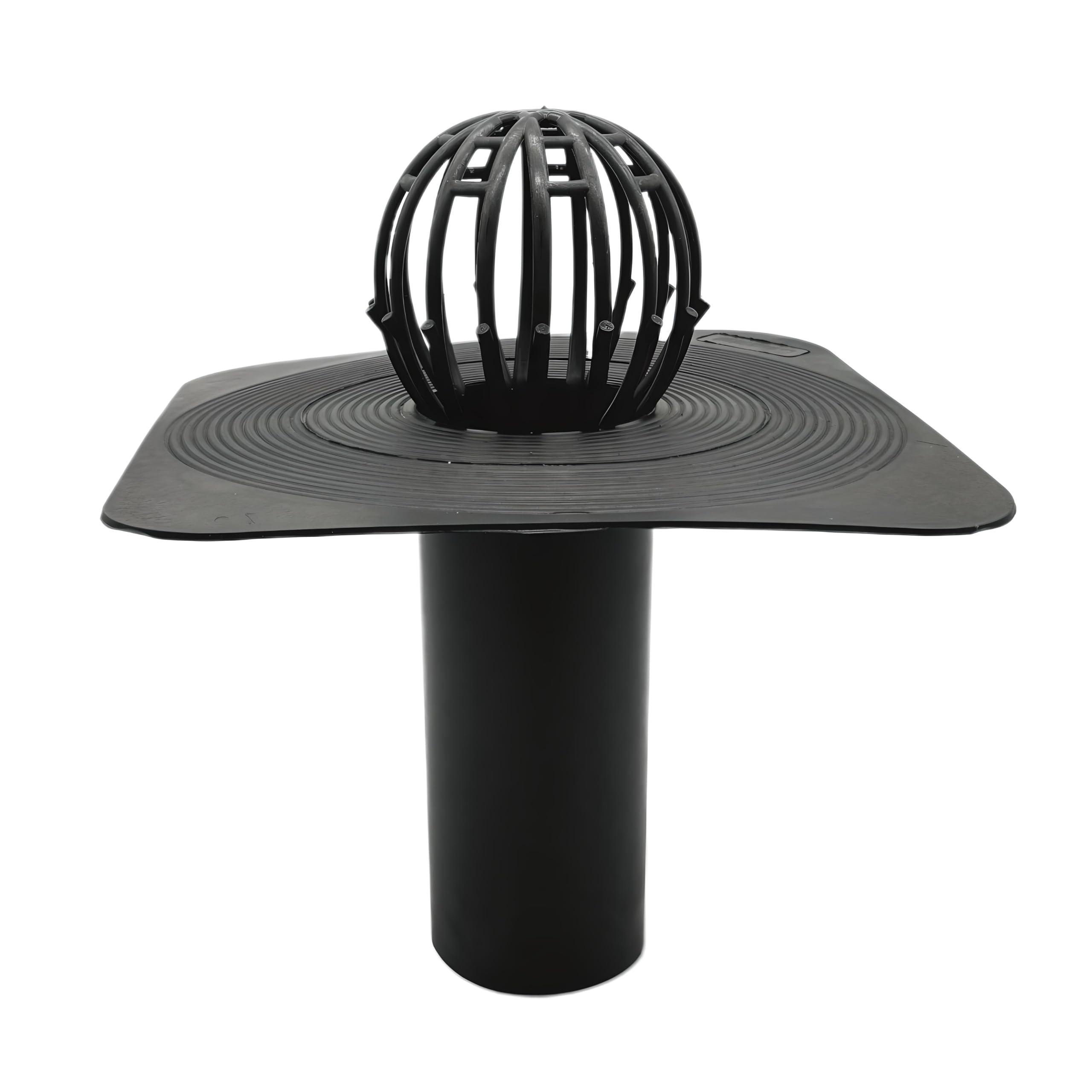

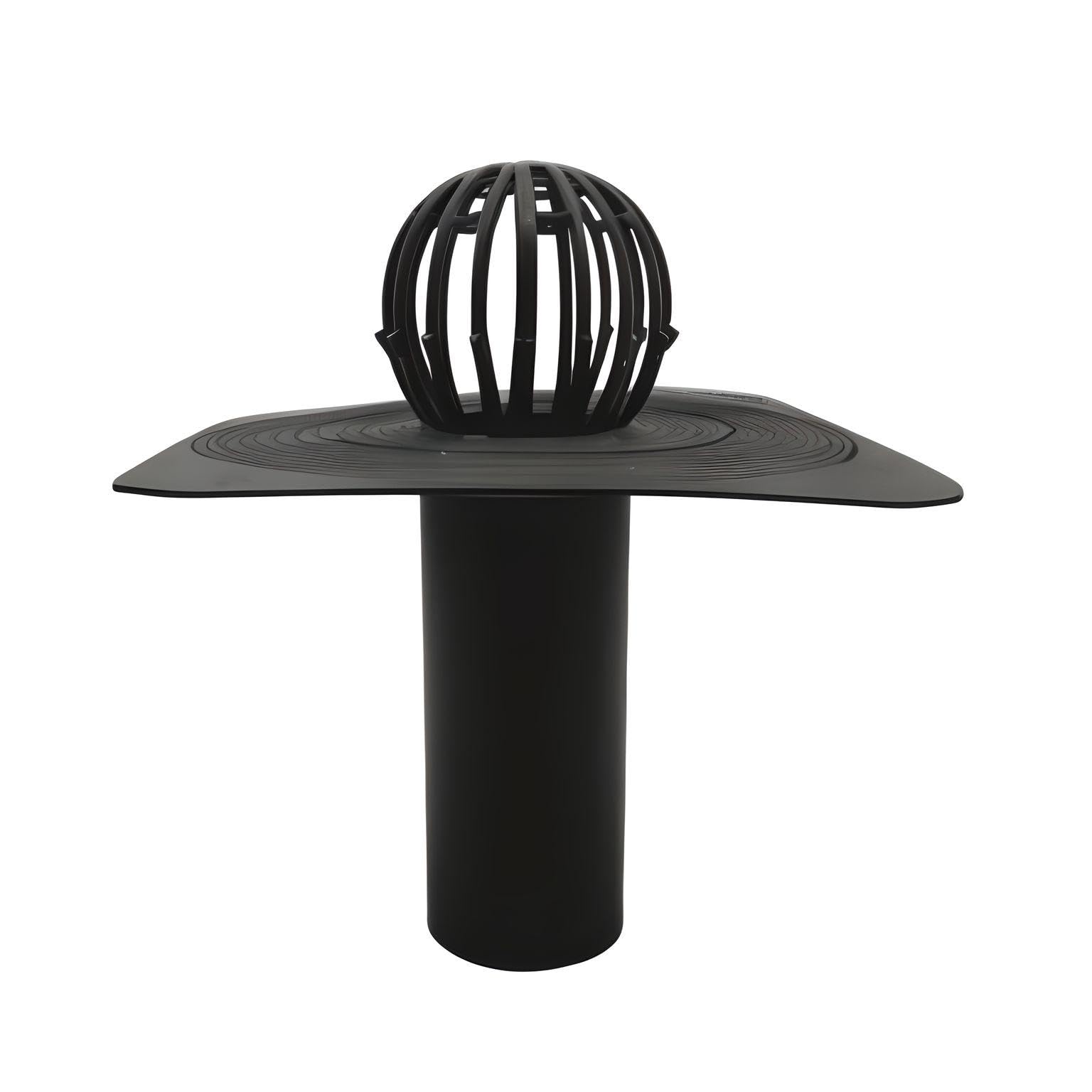

- ✅Complete set with leaf catcher: Includes matching leaf catcher that protects the downpipe from blockages and ensures drainage even when leaves fall heavily.
- ✅Easy installation: The roof drain is installed between the substrate and the roof membrane, the sealing is carried out reliably using universal adhesive between the roof membrane and the drain flange.
Binding: Tool
Model number: roof drain DN50
Article number: roof drain DN50
Details: Efficient drainage for flat roofs, available in sizes DN50 to DN150.
Nominal size: DN50 - DN70 - DN100 - DN125 and DN150
Material: Robust, durable special hard PVC. Robust and high-quality construction.
Areas of application: Suitable for balconies, garages, carports and flat roofs
Scope of delivery: 1 x flat roof drain with matching leaf catcher
Size:
Inner / outer diameter DN 50: 50mm / 55mm
Inner / outer diameter DN 70: 70mm / 77mm
Inner / outer diameter DN 100: 100mm / 107mm
Inner / outer diameter DN 125: 125mm / 132mm
Inner / outer diameter DN 150: 150mm / 157mm
Flange height: DN 50 to DN 150: 253mm
Material thickness: 3mm

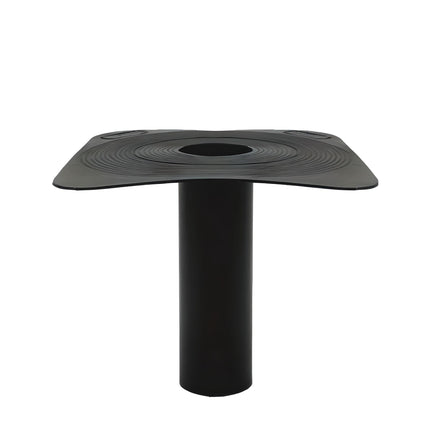

The internal roof outlet is installed between the substrate and the roofing membrane. The seal is created using a universal adhesive between the roofing membrane and the outlet flange.

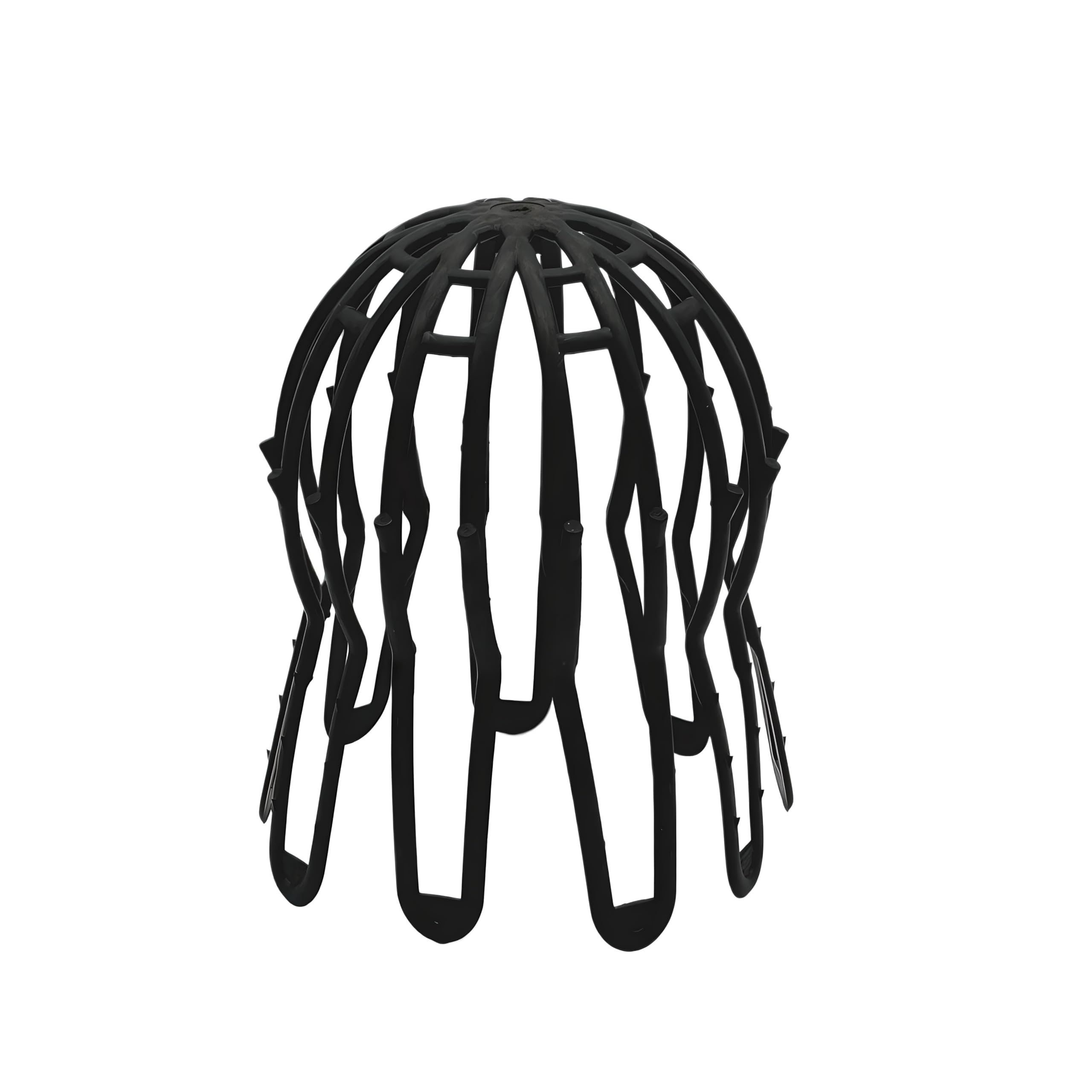

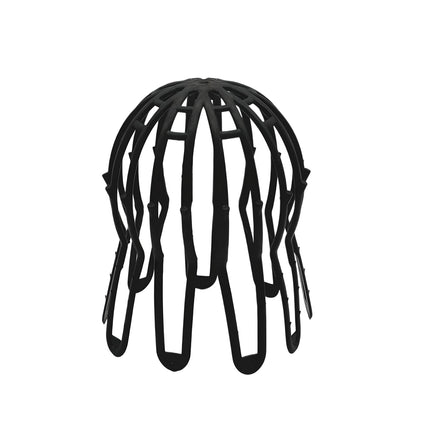

To protect the downpipe from clogging, a suitable leaf catcher (accessory included in delivery) is used.
Including VAT and invoice.
Package dimensions: 12.6 x 12.6 x 10.4 inches
