Description
Brand: BETAFPV
Color: Black
Edition: Pavo20 Pro
Characteristics:

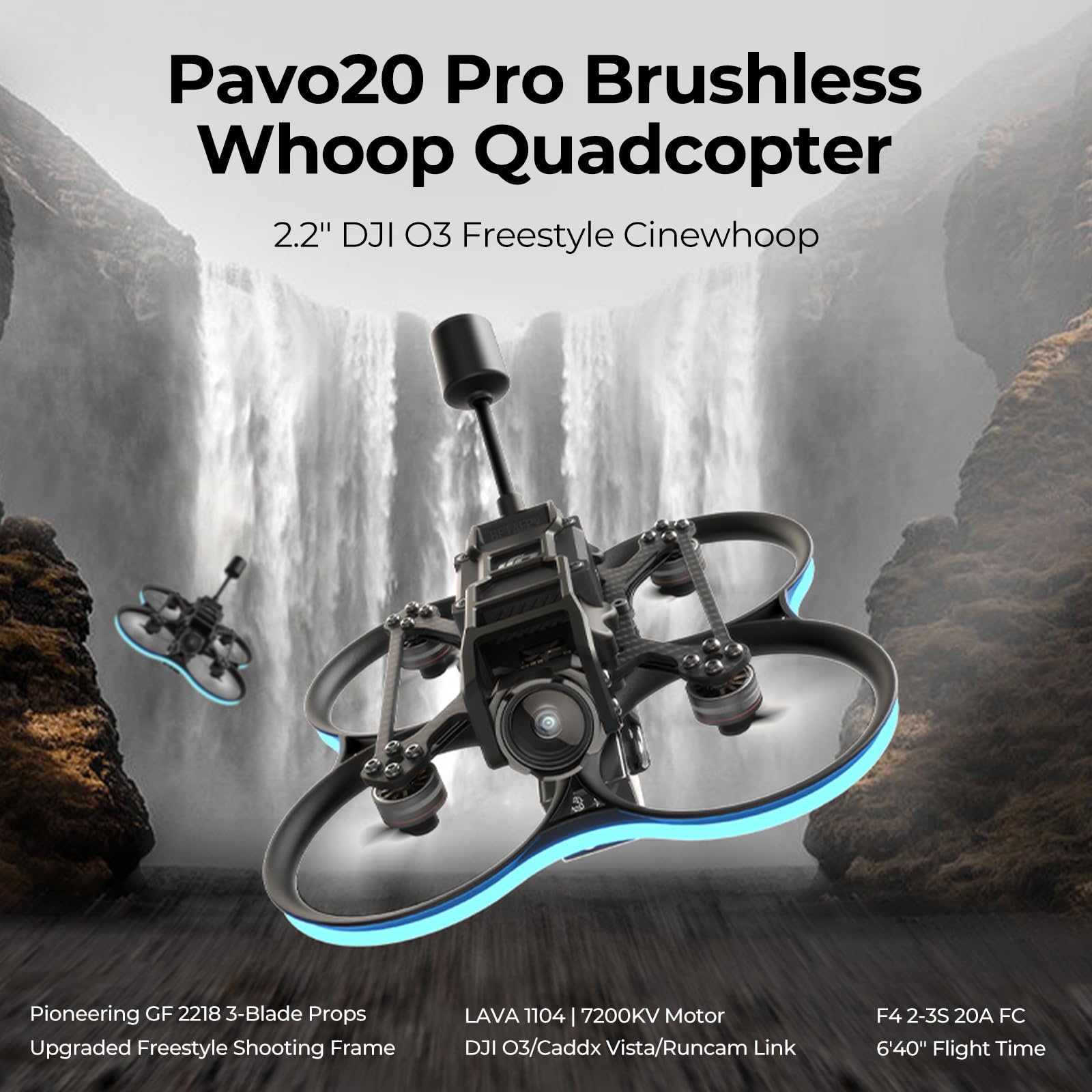

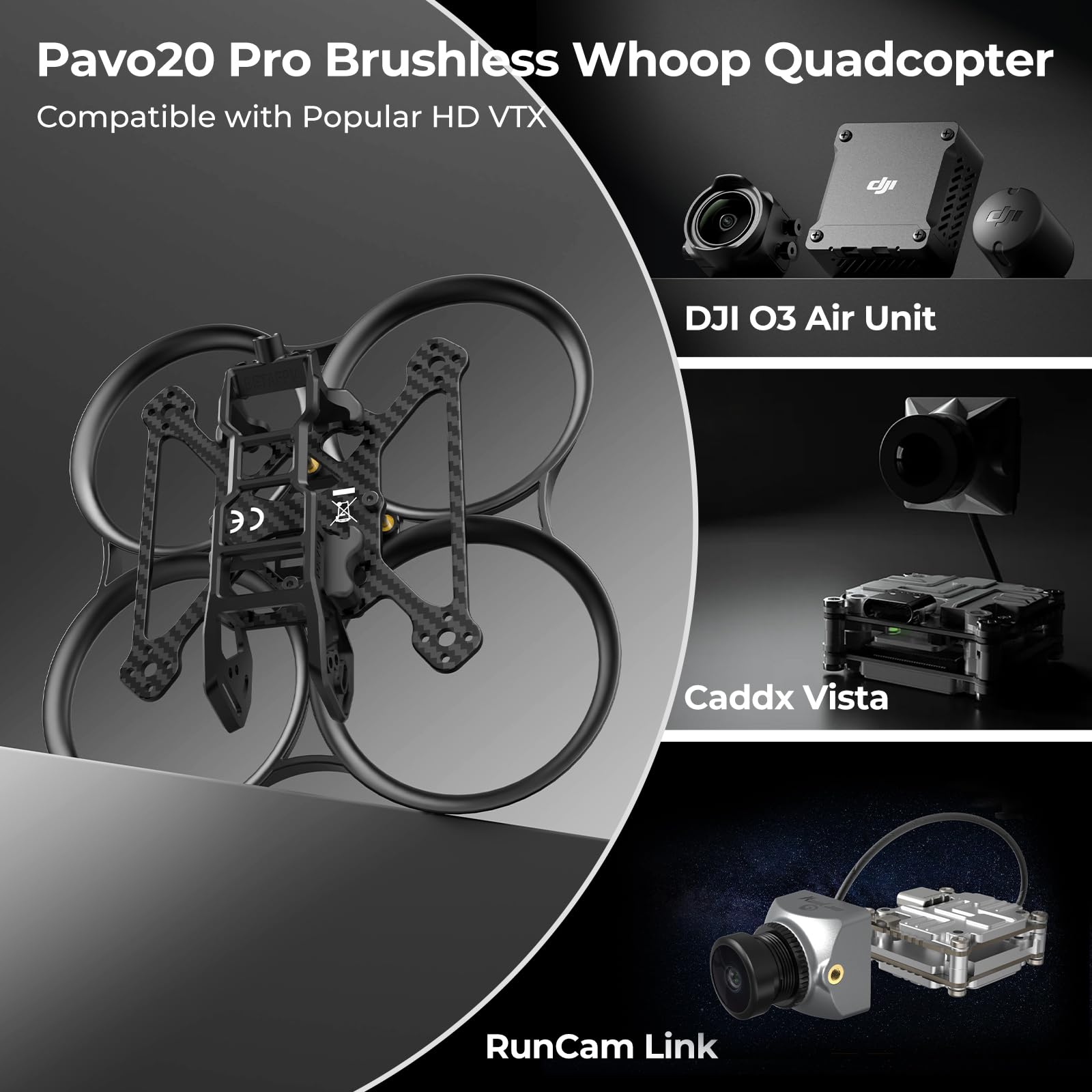

- As a 2.2'' cinewhoop drone quadcopter under 150g, the pocket-size Pavo20 Pro is an ideal choice for DJI pilots to enter FPV. Supports various types of HD digital VTX systems like DJI O3 Air unit/Caddx Vista/Runcam Link etc.Exclusively sculpted for FPV freestyle shooting
- Continuing the frame structure of Pavo20, we improved the whoop duct, combined LAVA1104 7200KV motor, and 2.2'' lower pitch Gemfan 2218 3-blade propeller propulsion system, this equipment offers unparalleled max thrust for freestyle. It achieves a thrust-to-weight ratio greater than 5:1, delivering a faster and more agile freestyle

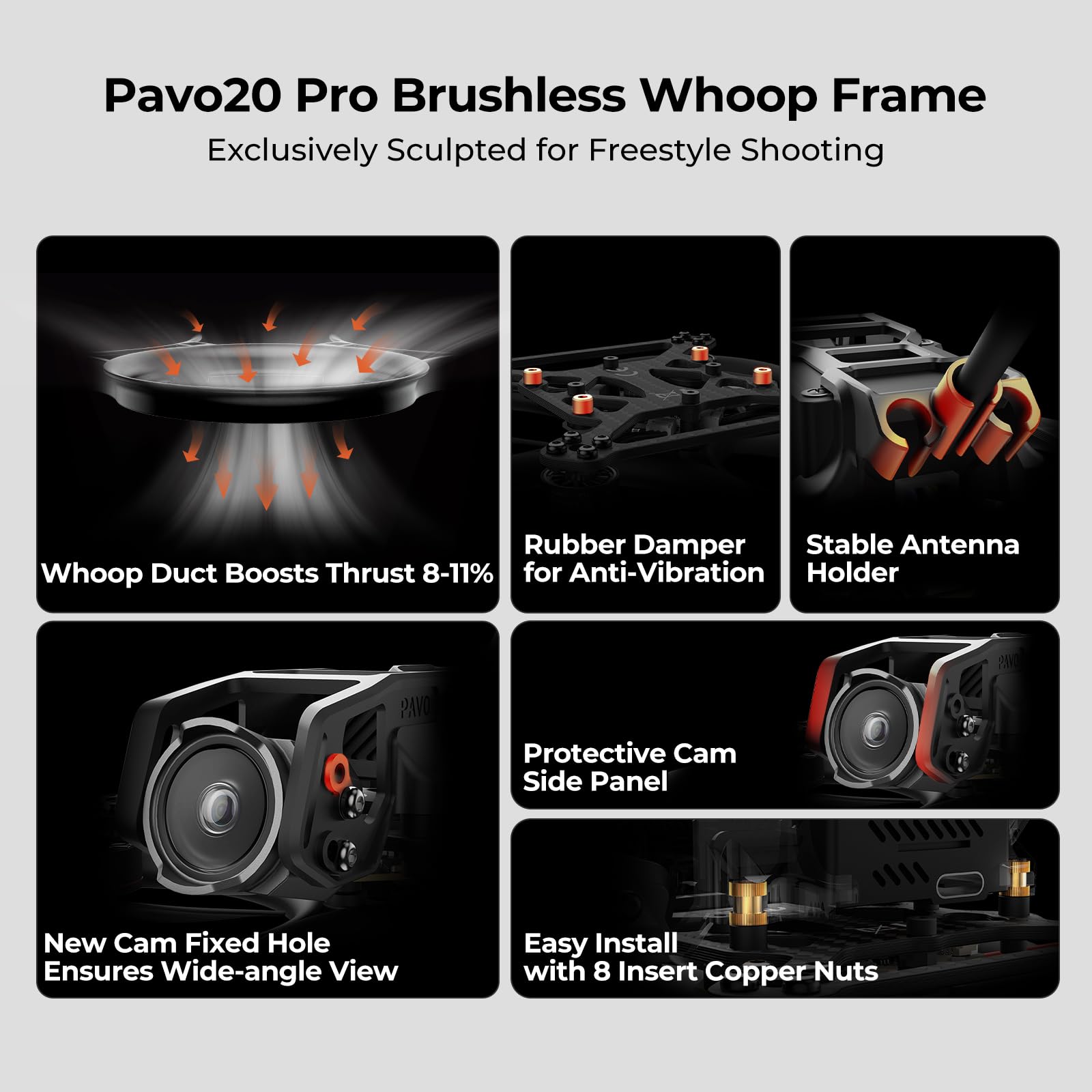

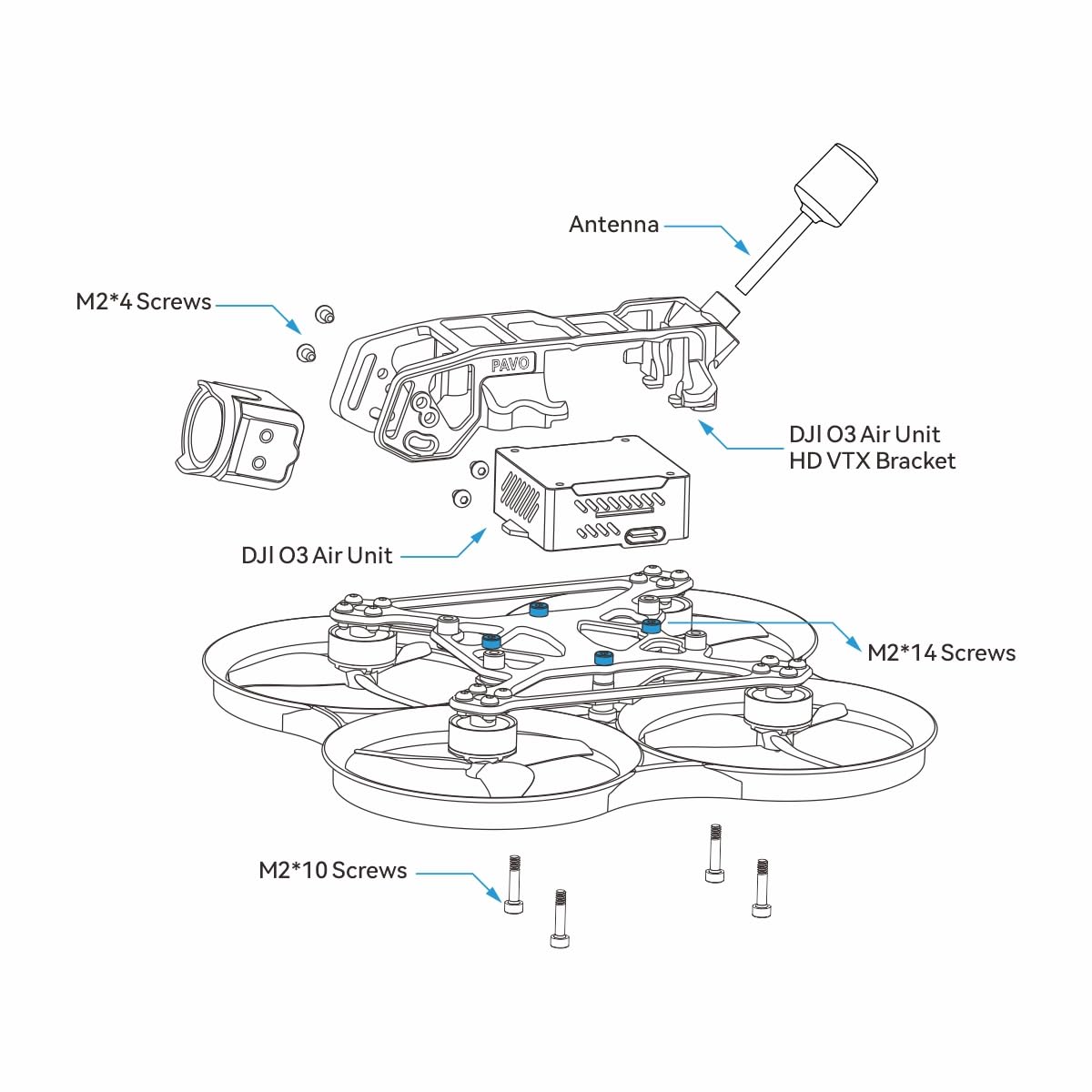

- Integrated injection molding HD VTX mounting bracket, has a split design that makes it effortless to install for pilots DIY, and explores more possibilities while ensuring HD image quality. The camera side panel and 6-point fixation hole design precisely safeguard the lens, guaranteeing uncompromised lens protection, including 2 new cam fixed holes for the wide-angle mode shooting, minimizing the cam side panel shadows for the wide-angle view
- Pavo20 Pro with a 93.7mm wheelbase frame is constructed with a crash-proof PA12 thickened whoop duct, its reinforced cross-section design enhances the strength and blast resistance, ensuring durability in demanding flight conditions. It also accommodates COB LED strips seamlessly which can be securely mounted on the frame whoop duct, adding unique lighting effects and a visually captivating appearance.

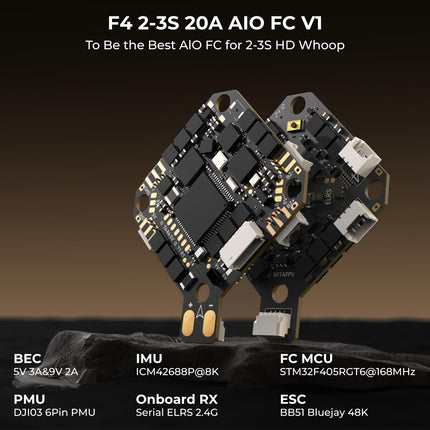

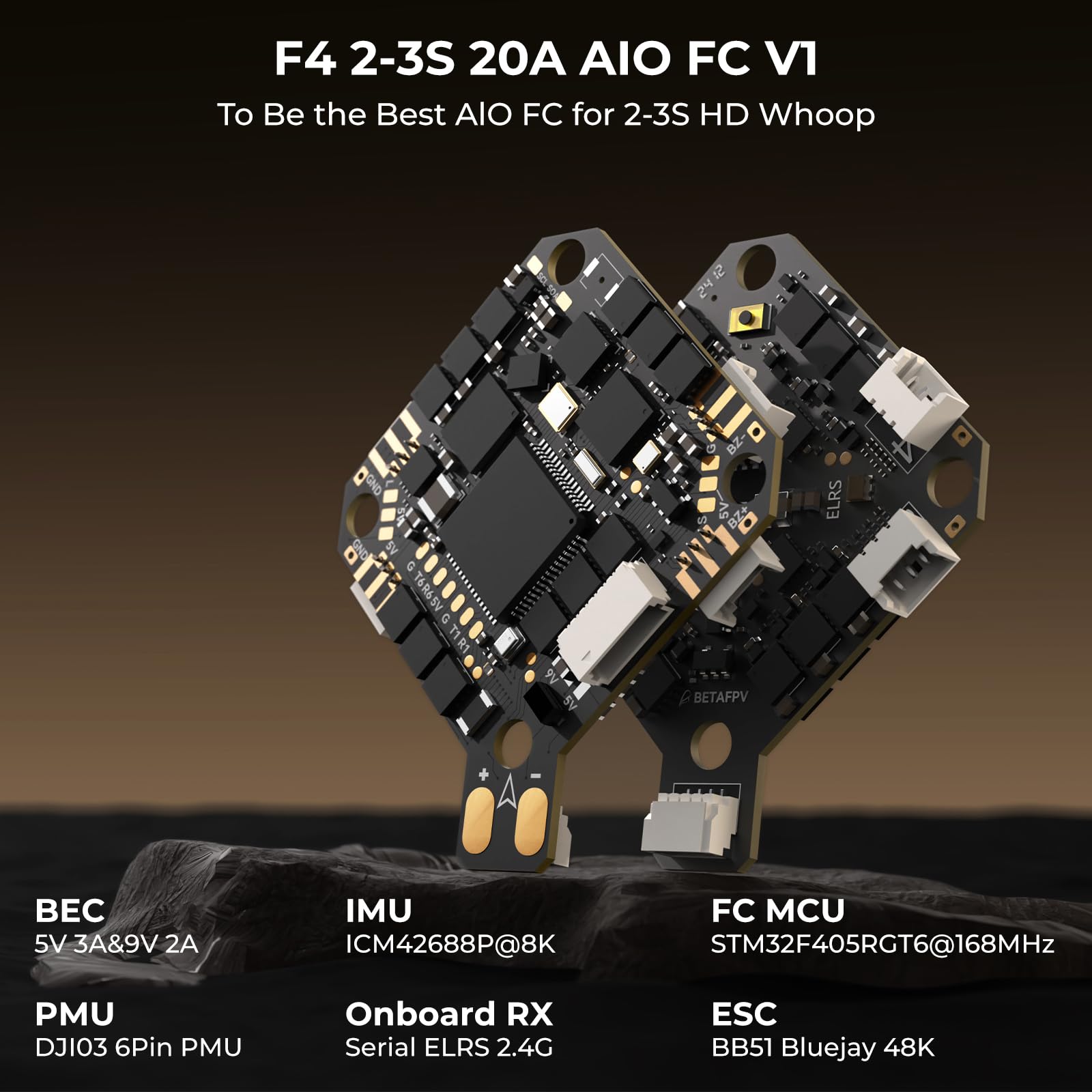

- Equipped with F4 2-3S 20A AIO flight controller integrates features such as a 16MB black box, with support for GPS, external receivers, and other devices. It includes a DJI O3 6-pin PMU allowing for connection to HD VTX without soldering. Its improved computing power, high response speed, and stable flight make it an ideal choice for freestyle
Item number: P20PROEU
Details: Caution: Please correctly connect the battery's positive and negative terminals to prevent drone damage.
Note: Battery, DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD Digital VTX are NOT included in all packages. Please buy them separately.
Specification

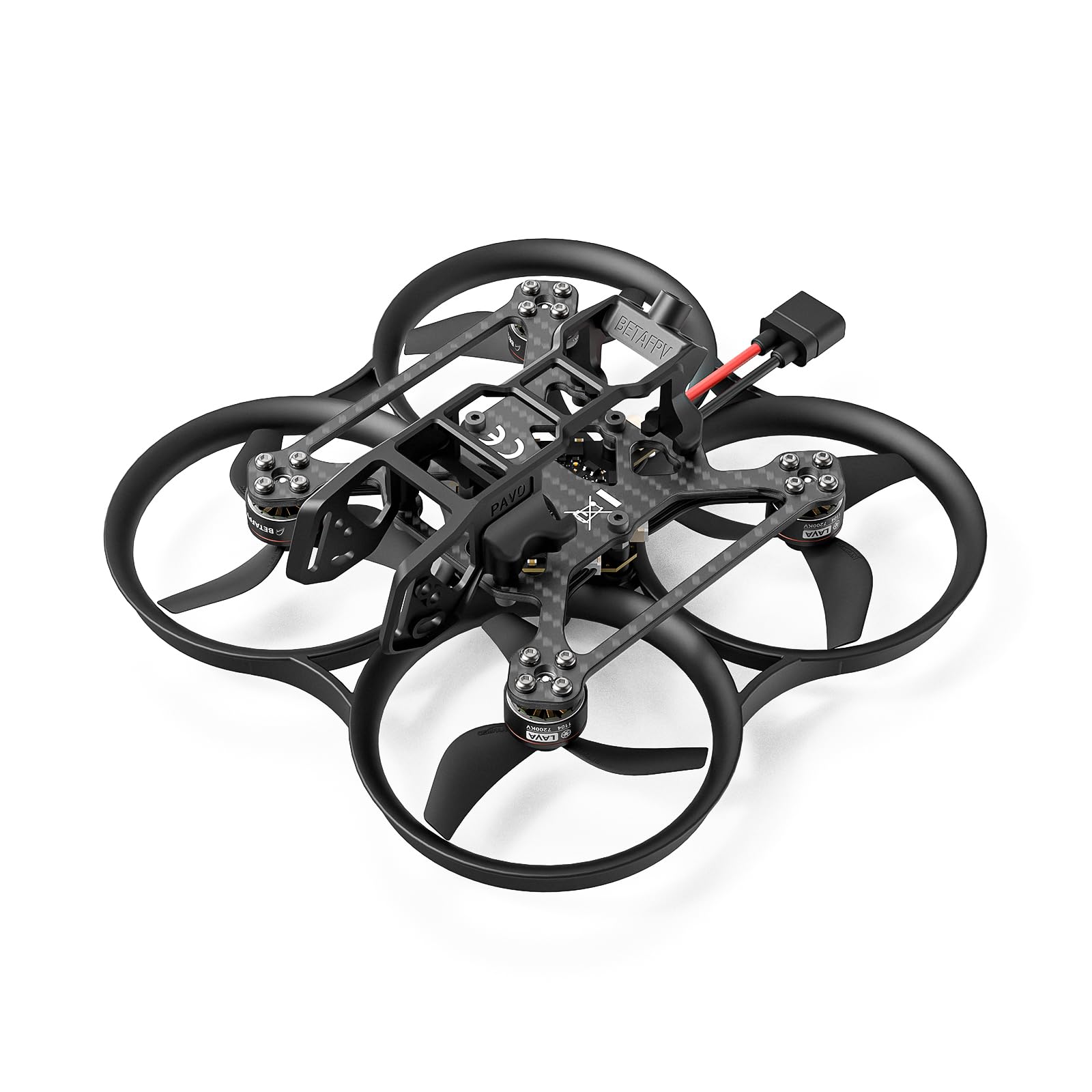

Items: Pavo20 Pro Brushless Whoop Quadcopter
Wheelbase: 93.7mm

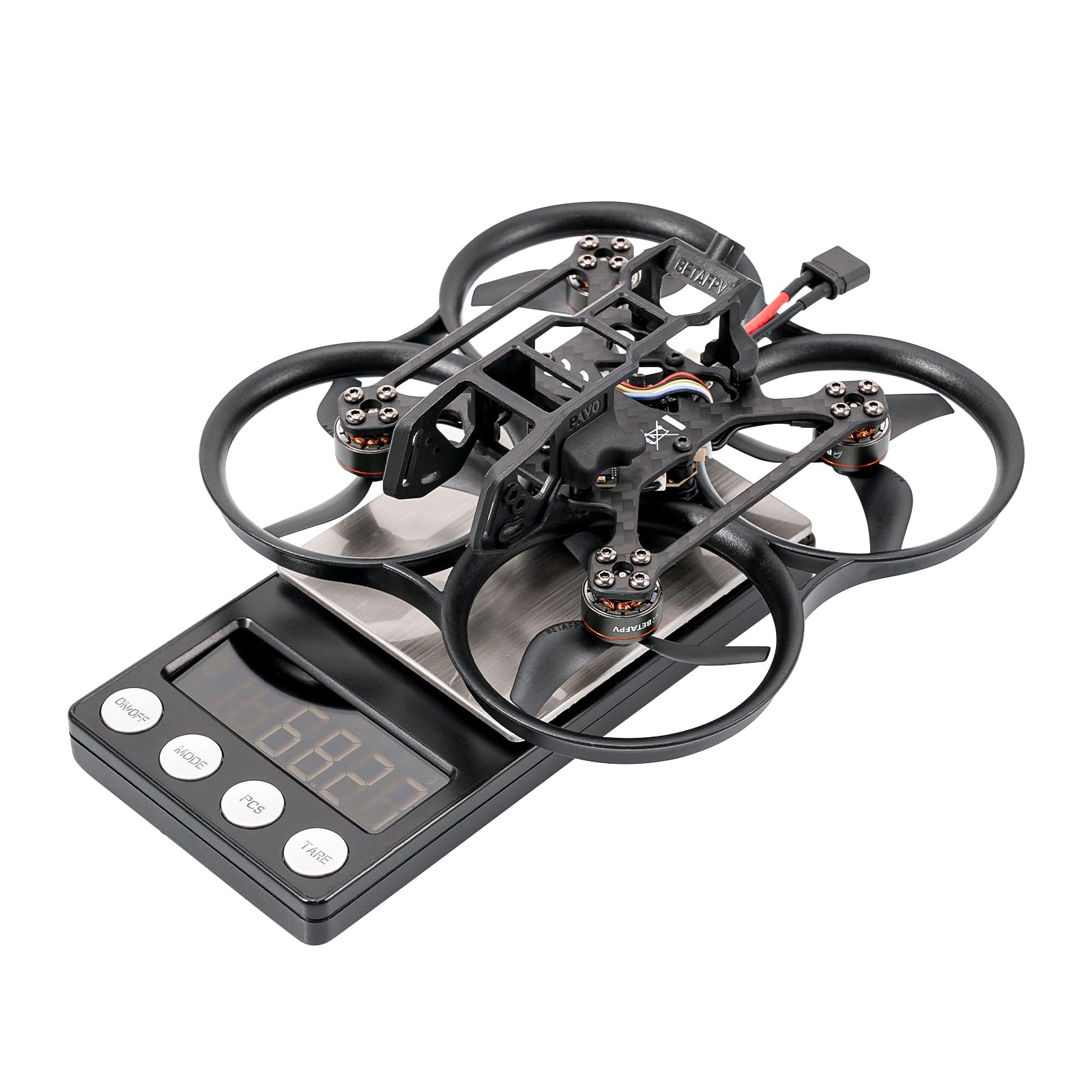

Weight(Without Battery, Air Unit): 66.3g
Support VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
Support Cam: DJI O3 Cam, Caddx Series, RunCam Series 19mm/20mm
Camera Filter Installation: Vertical
Battery Connector: XT30
Battery Slot: 20mm*Unlimited Height
Recommended Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery, 3S 650mAh Battery
FC: F4 2-3S 20A AIO FC V1

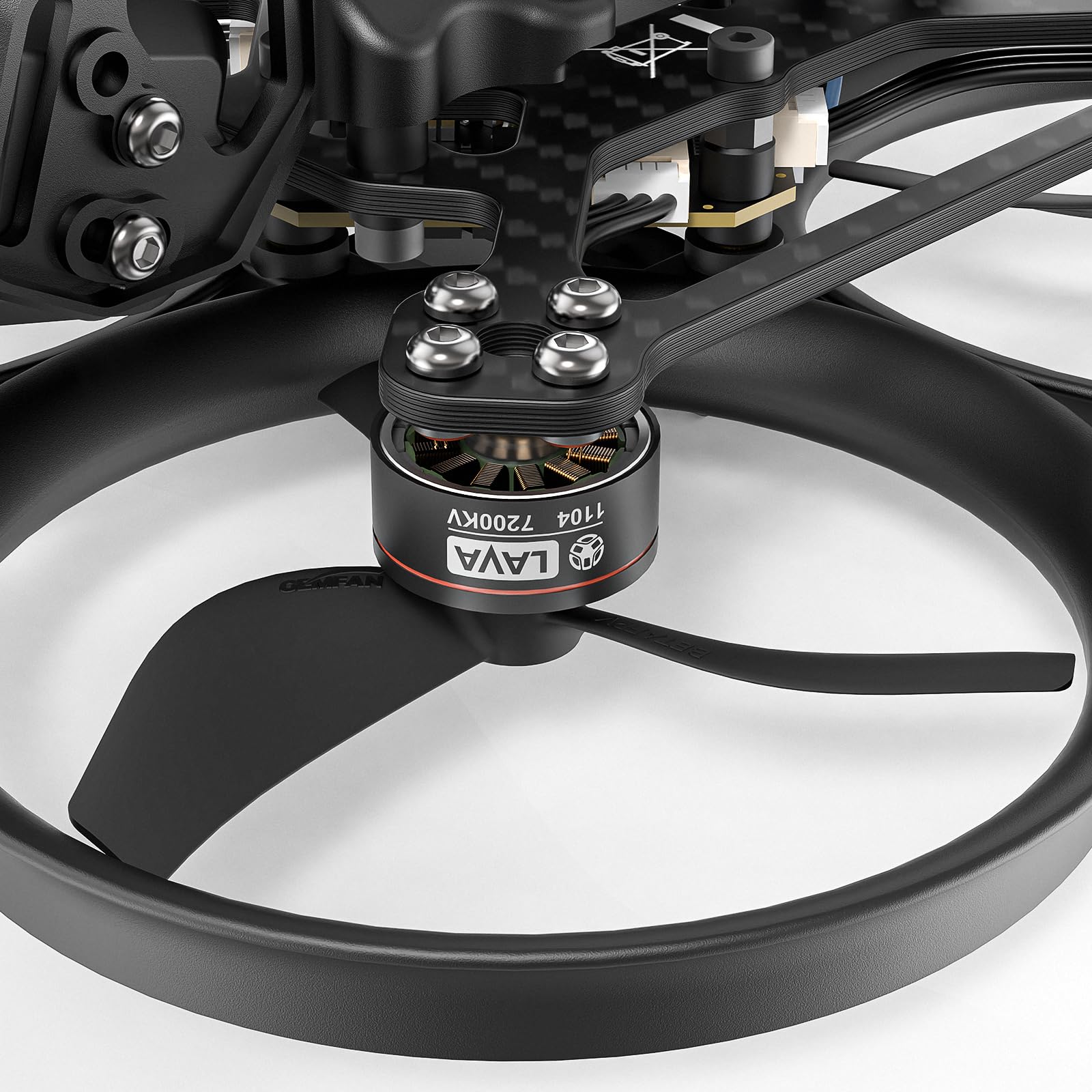

Engine: LAVA Series 1104 | 7200KV brushless motors
Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Flight Time: 6'40'' (LAVA Series 3S 550mAh Battery)
RX Version: ELRS
Recommended Parts
FC&ESC: F4 2-3S 20A AIO FC V1
Engine: LAVA Series 1104 | 7200KV brushless motors
Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Frame: Pavo20 Pro Brushless Whoop Frame
Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
VTX: DJI O3, Caddx Vista, RunCam Link

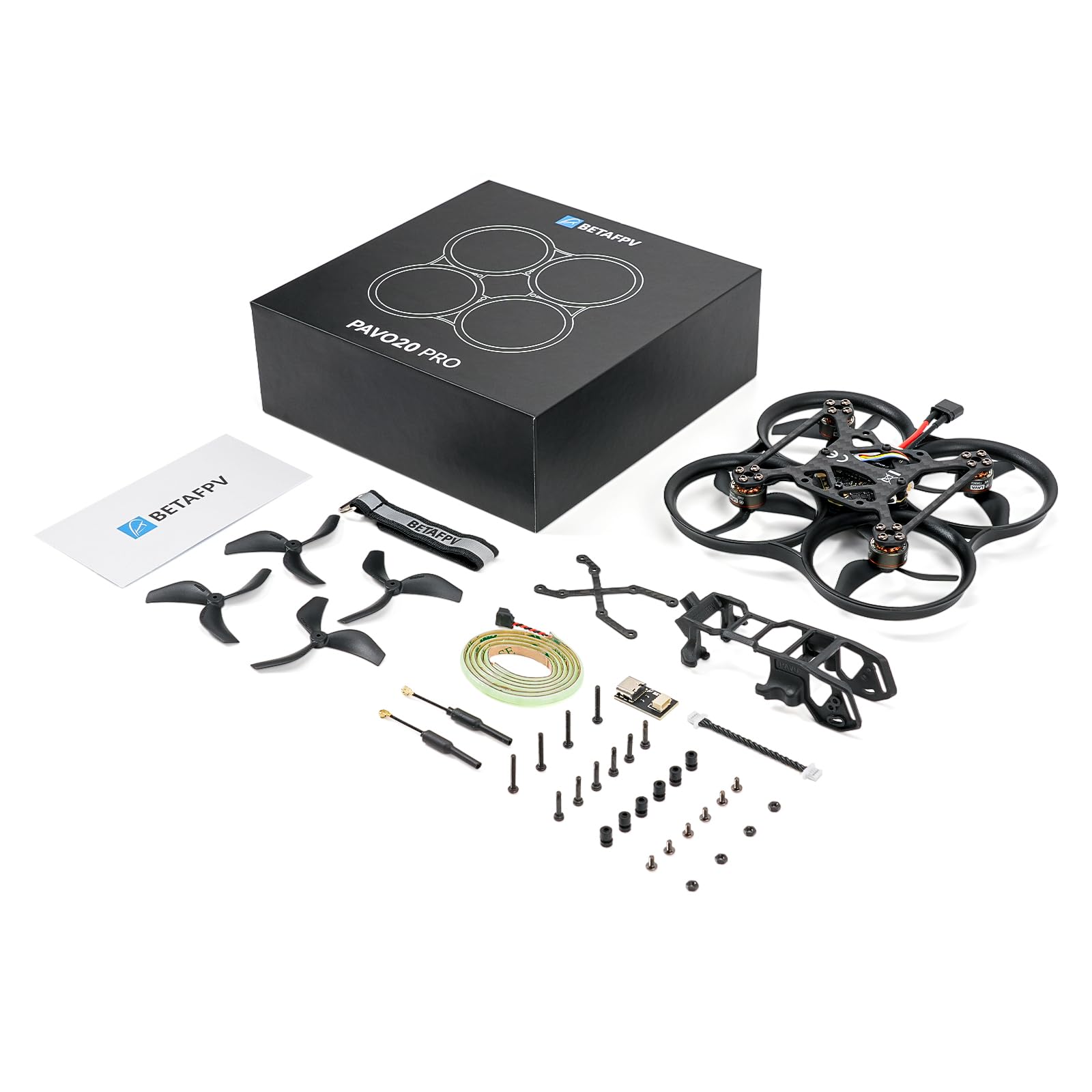

Package
1 * Pavo20 Pro Brushless Whoop Quadcopter
1 * Pavo20 Pro HD VTX Bracket
1 * HD VTX Bracket Screw Package
1 * Pavo Series COB LED Strip Accessory Kit (Ice Blue)
4 * Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
1*PCBA | Type-C adapter board
1 * 4-pin adapter cable
Package dimensions: 6.4 x 6.4 x 2.3 inches
