Description
Brand: BETAFPV
Characteristics:

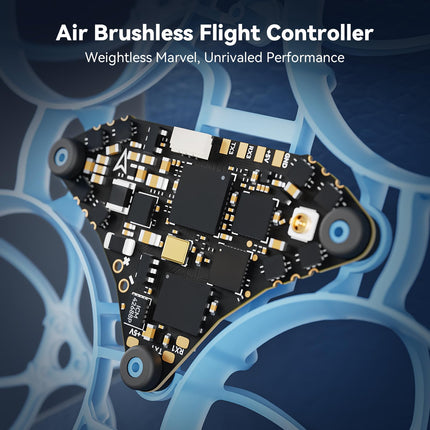

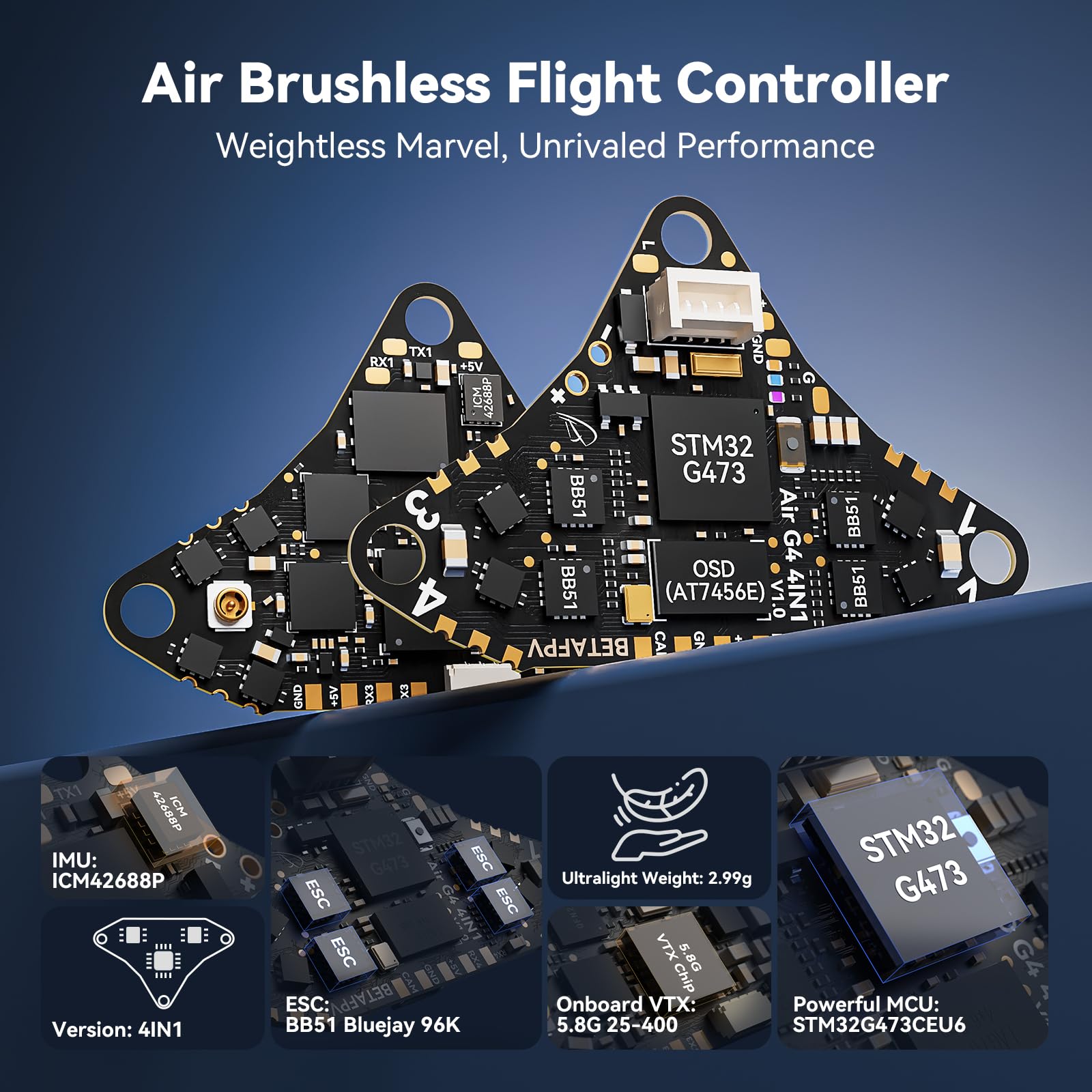

- Air Brushless Flight Controller, the first 1S FC that utilizes the G473 processor, experienced a remarkable 55% increase in computing speed and lightning-fast response times for precise racing and complex freestyle maneuvers, surpassing the F411
- Higher integration yet lightweight design, featuring a custom miniature OSD chip. Weighing only 2.9g (4IN1 Version), it offers extra UART port options for effortless function expansions, adapting flawlessly to any flight scenario
- Default integrated onboard 25-400 VTX. Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC adjustments
- Elevate your drone's precision with the industry-leading ICM42688P gyro, integrated accelerometer, cutting-edge sensor calibration, and filtering algorithms, and a sample rate of up to 8K, which takes the drone's posture and movement accurate and precise drone to the next level
- Unlock extensive flight data recording and analysis with an impressive up to 16MB capacity black box. Maximize performance and diagnose faults effectively, leveraging the full potential of your drone
Details: Attention
1. VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100.
2. Motor Wiring: Only soldering is supported for motor wiring on the flight control. Avoid terminal plugging.
3. VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set the transmission power to 0 to avoid burnout.
Specification of FC

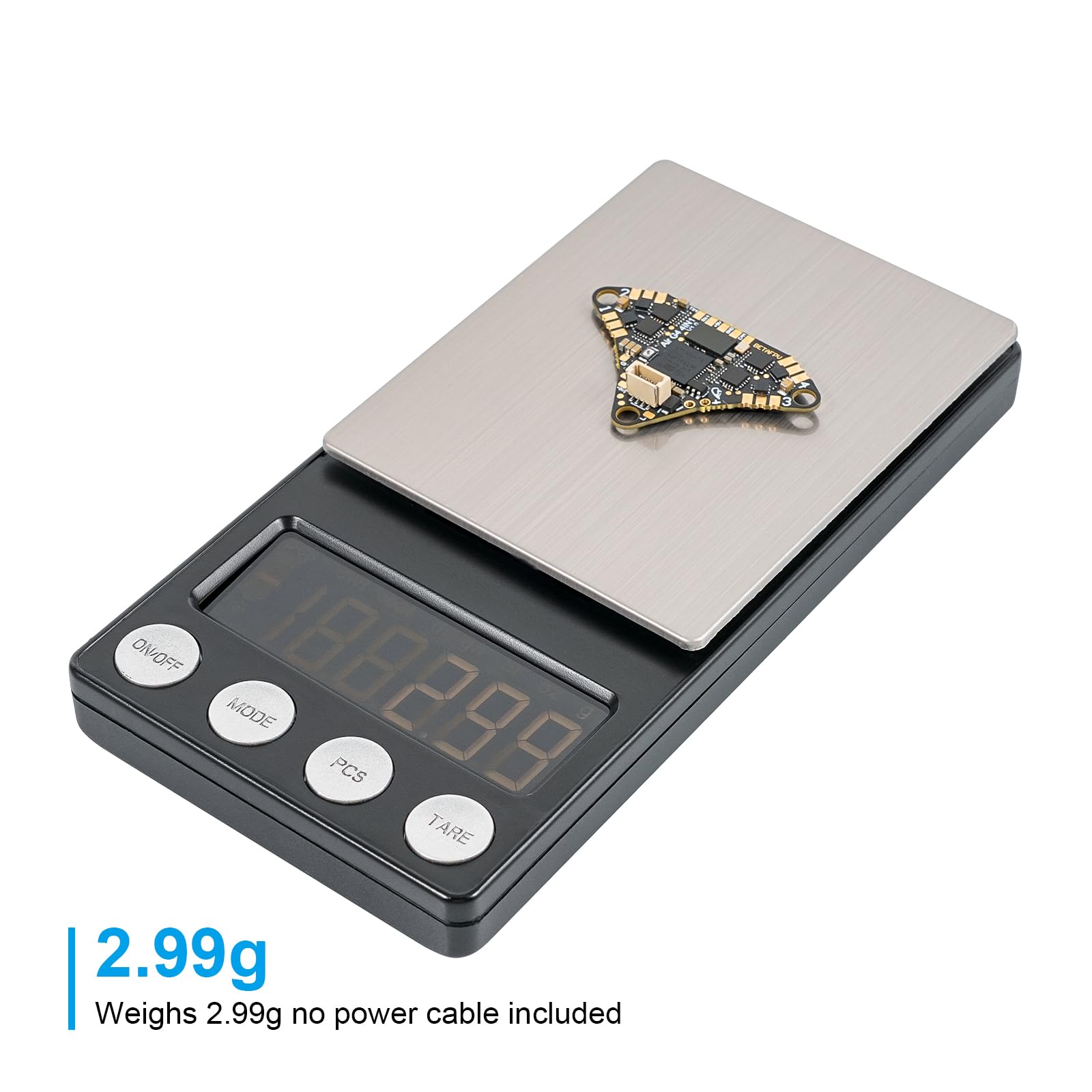

Weight: 2.9g (4IN1 version)
Mounting Hole Size: 26mm x 26mm

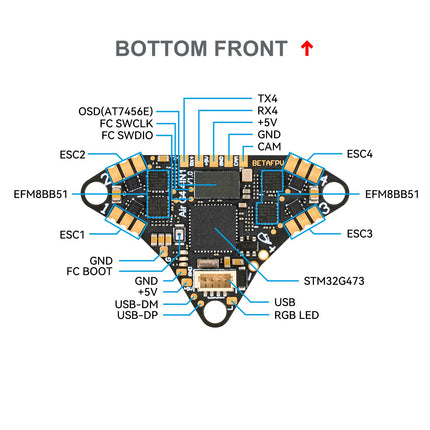

CPU: STM32G473CEU6 (168MHz)

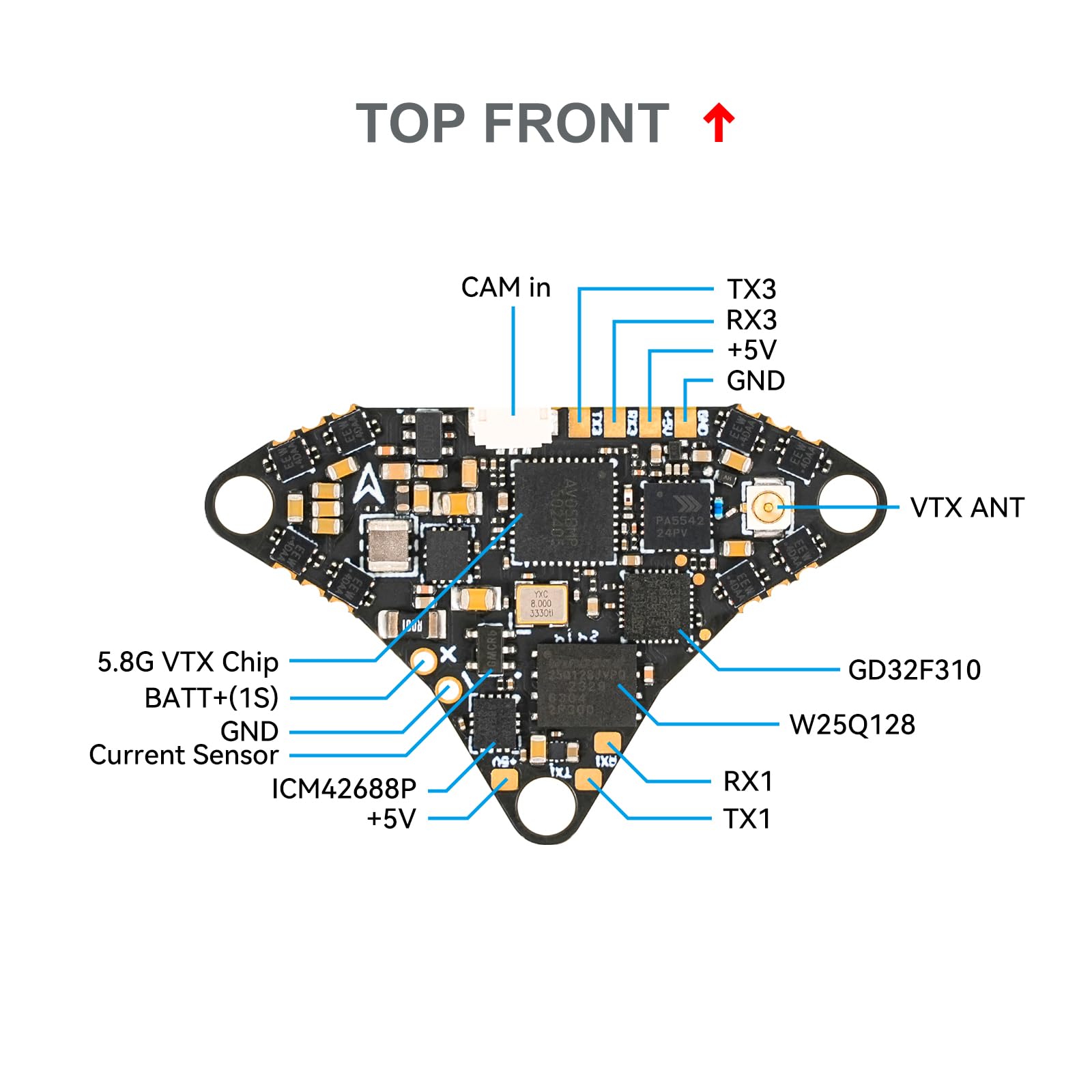

Six-Axis: ICM42688P (SPI connection)
Black box memory: 16MB
Sensor: Voltage&Current
5V BEC: 5V 3A
USB port: SH1.0 4-pin
Built-in ESC with 5A continuous
4IN1 Version: FC+ESC+OSD+VTX
Specification of ESC
Input Voltage: 1S
FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
Signal Support: D-shot300, D-shot600
Specification of VTX
Output power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation Type: FM
Frequency Control: PLL
All Harmonics: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: ±1.5dB
Antenna Port: 50
Operating Temperature: -10℃~+80℃
Recommended Parts
Drones: Air65, Air75
Frames: Air65, Air75, Meteor65, Meteor65 Pro, Meteor75 Pro
Engines: 0702/0702SE, 0802/0802SE, 1102

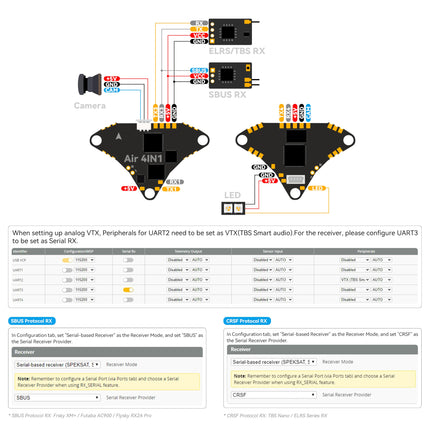

Receiver: ELRS Lite Receiver, ELRS Nano Receiver

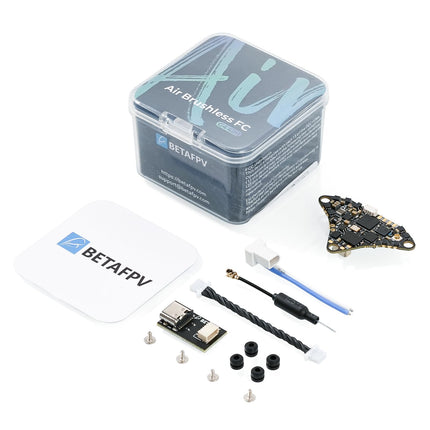

Package
1 * Air Brushless Flight Controller - 4IN1 Version
1 * Type-C to SH1.0 adapter
1 * SH1.0 4-Pin Adapter Cable
1 * 5.8g VTX Antenna
1 * BT2.0 U Whoop Cable Pigtail | 40mm
4 * M1.4*4 Self-tapping Screws
4 * Shock-absorbing balls
Package dimensions: 2.2 x 2.2 x 0.8 inches
