Description
Brand: ACO
Color: Black
Characteristics:
- Very stable, robust and break-proof channel body with light weight including Microgrip slotted grating
- Length: 100cm x Height: 7.9cm x Width: 12.9cm / Length can be individually adjusted to local conditions

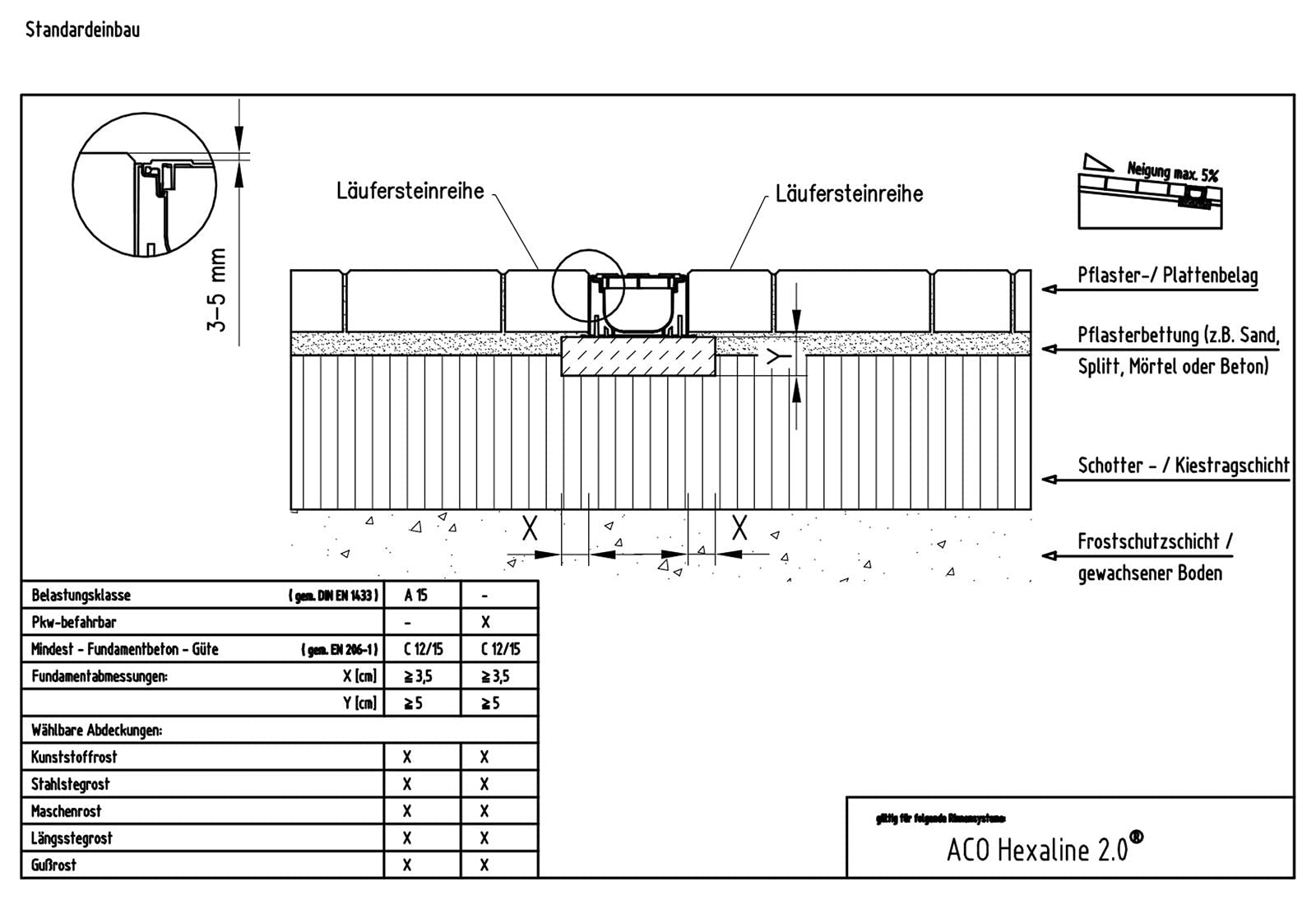

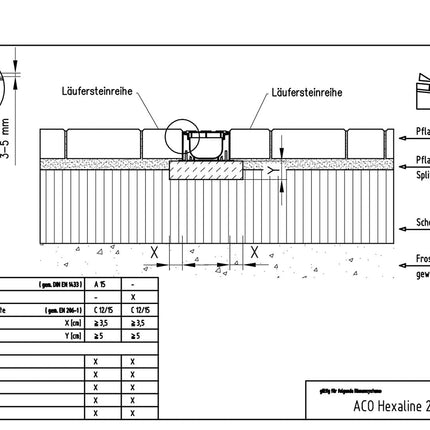

- Suitable for car traffic when embedded in concrete according to installation instructions / high stability even on sand (for walkable application) / double grate support / anti-shift and anti-spread protection

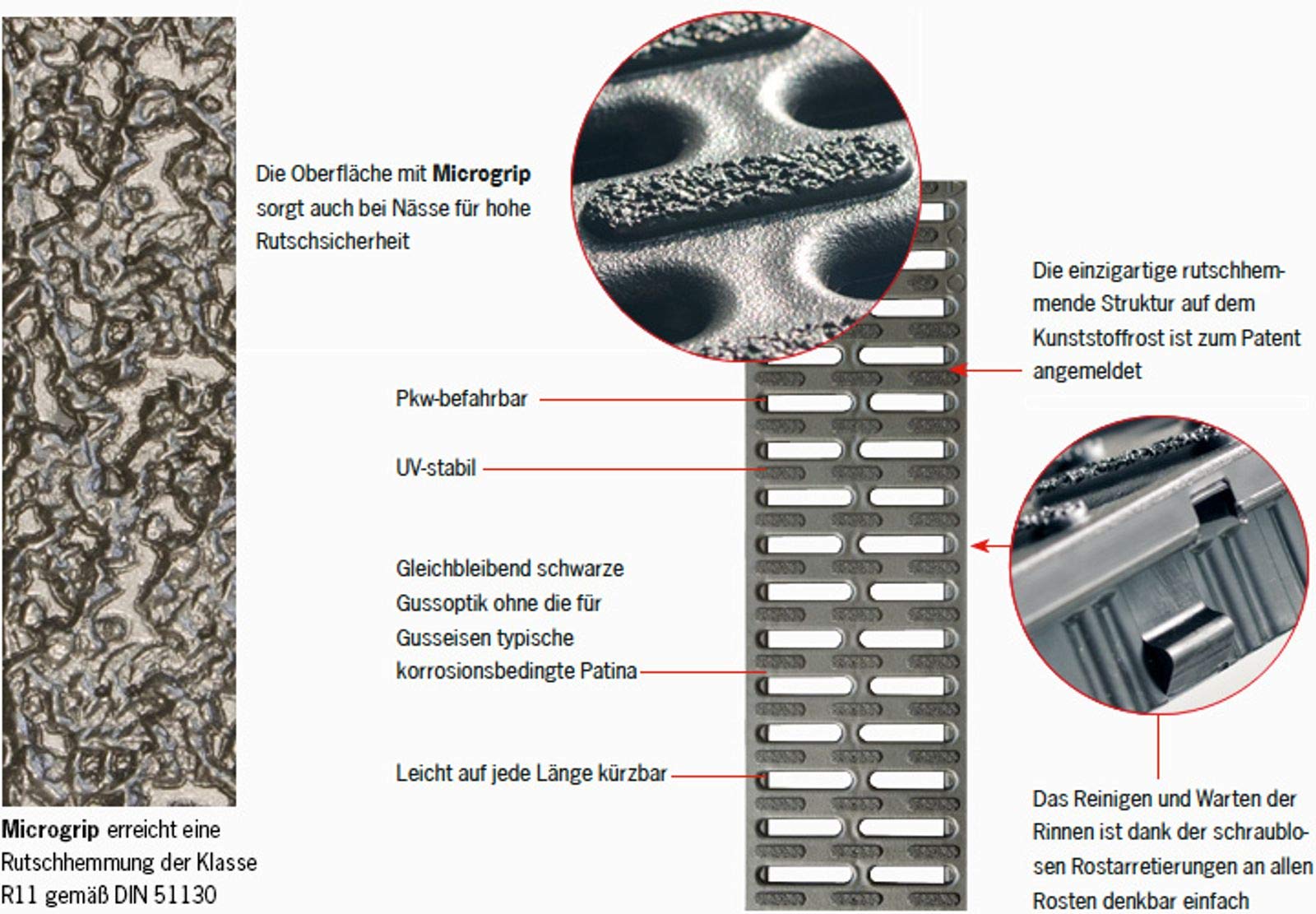

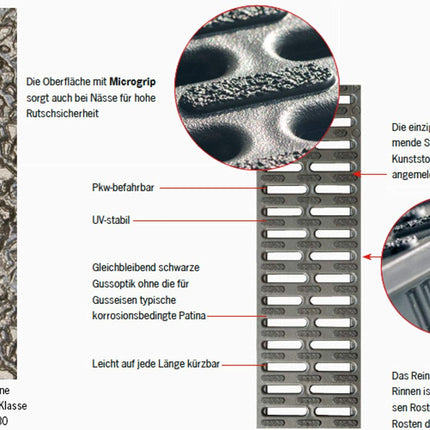

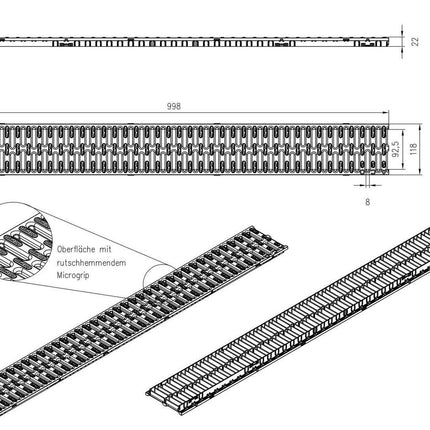

- Microgrip structure molded directly into the grate surface and therefore particularly durable / even under heavy use, the plastic grate retains its anti-slip properties

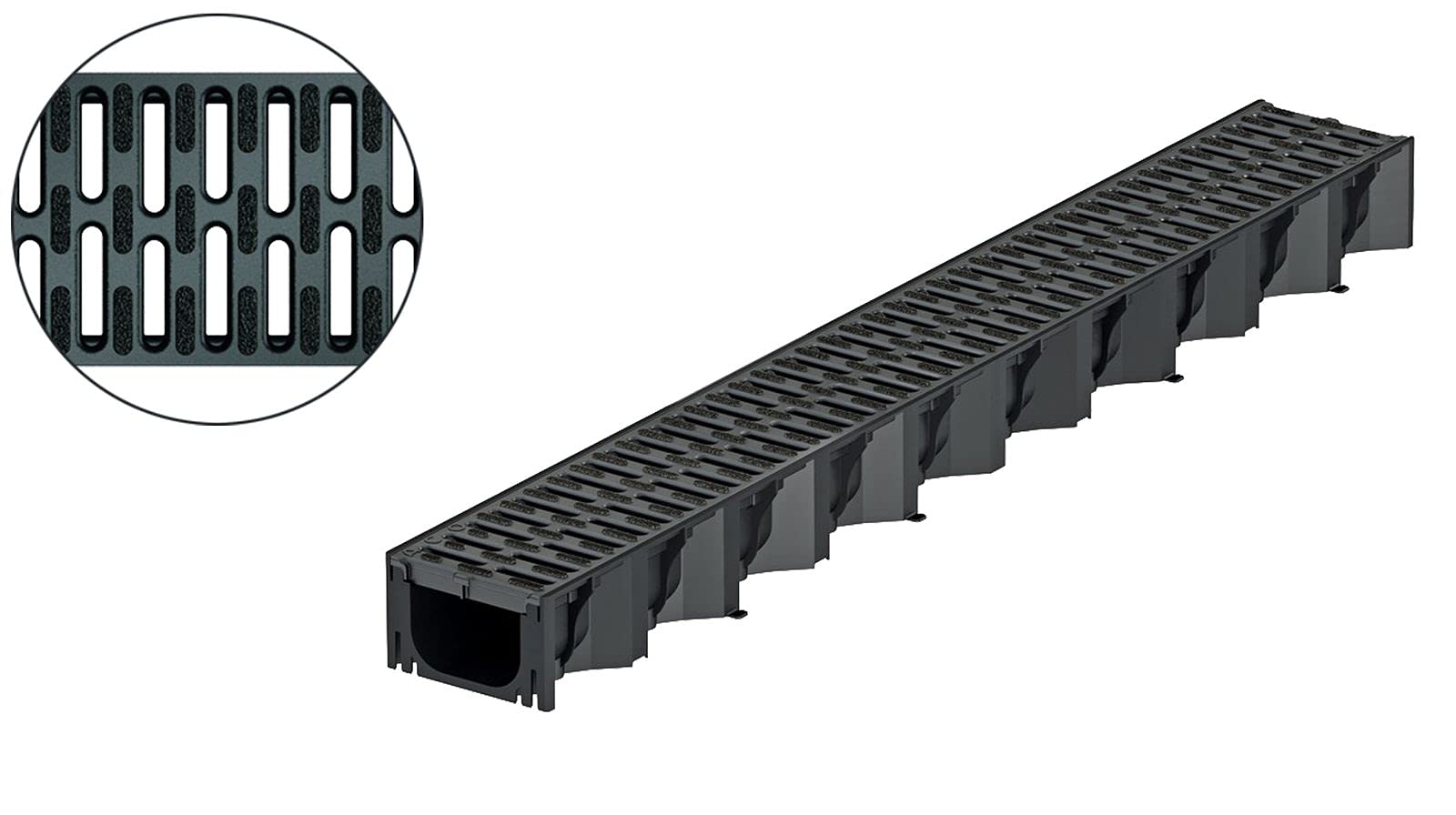

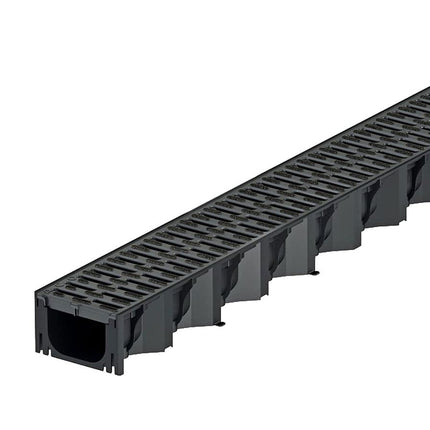

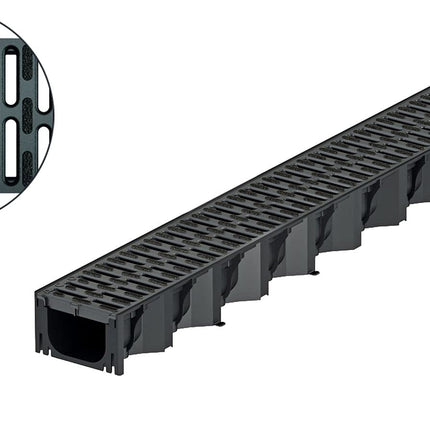

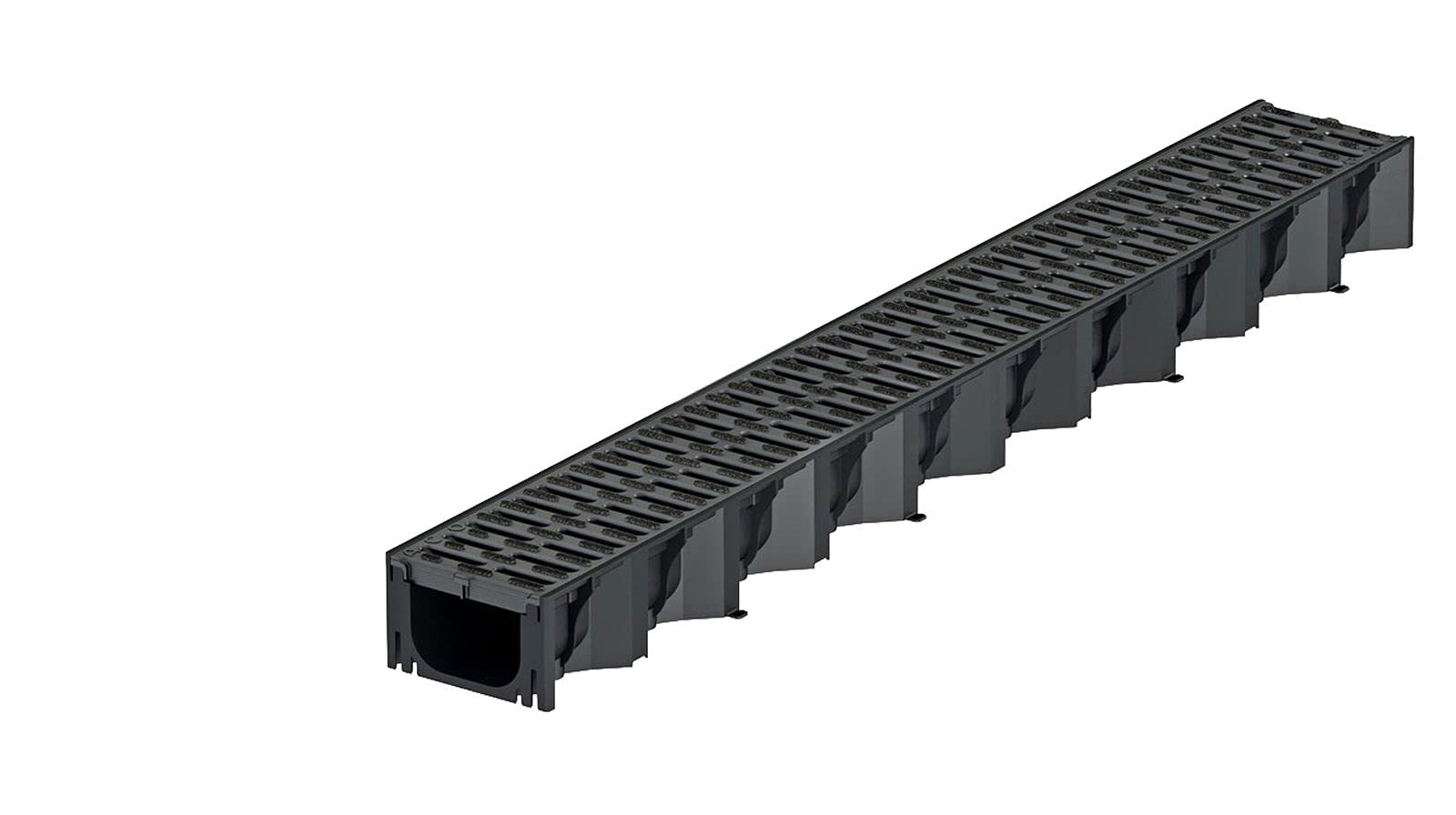

- Scope of delivery: 1 pc. ACO Hexaline 2.0 drainage channel including Microgrip slotted grating
Article number: 319210
Details: 1m ACO Self drainage channel with Microgrip plastic grating
Included in delivery:
1x ACO Hexaline 2.0 drainage channel with Microgrip slotted grating Art. No. 319210 - EAN: 4002626503206
The innovative ACO Self channel system Hexaline 2.0 has been specially developed for the safe drainage and visual accentuation of terraces, courtyard entrances and other sealed surfaces.
The recyclable plastic and the innovative production process make the channel body lightweight, robust, and break-resistant. The honeycomb structure in the sidewall gives the channel body high stability. Embedding it in concrete is therefore only necessary when the channel is subject to traffic. The surface covering can be applied directly. The plastic grating with Microgrip provides a slip-resistant covering for the drainage body. In addition to the proven studded structure, the grating is equipped with numerous tiny raised areas that ensure safe footing even in high humidity.

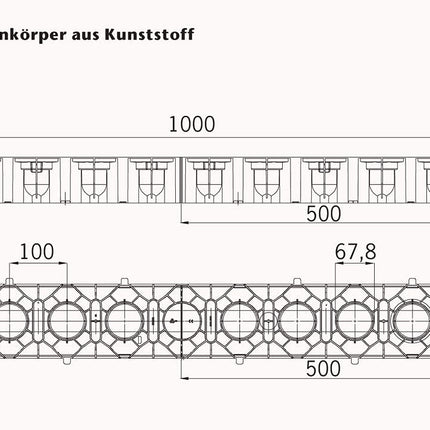

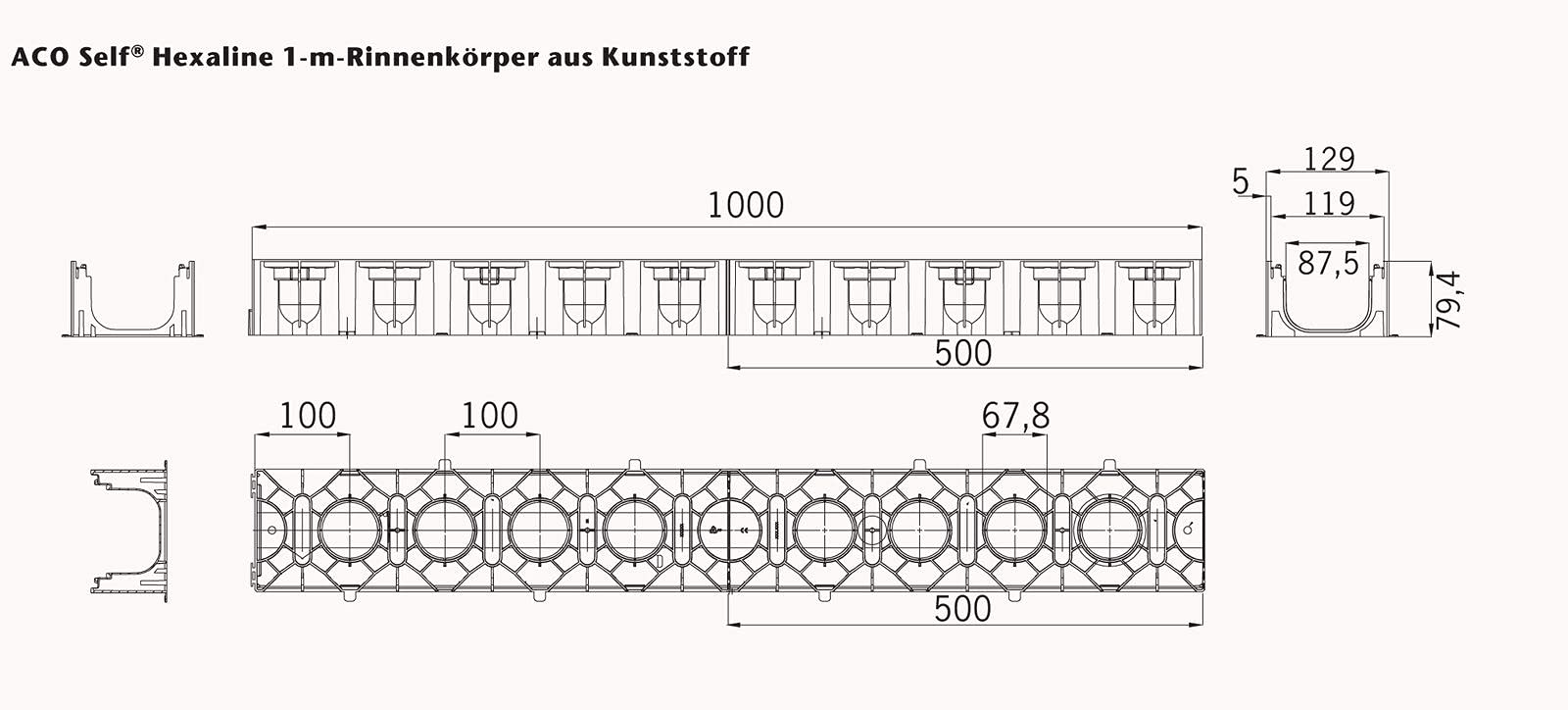

Technical details of an ACO Self Hexaline 2.0 floor channel:
Length: 100cm
Height: 7.9cm
Width: 12.9cm
· Anti-displacement and anti-spreading protection
· Double grate support and screwless grate locking

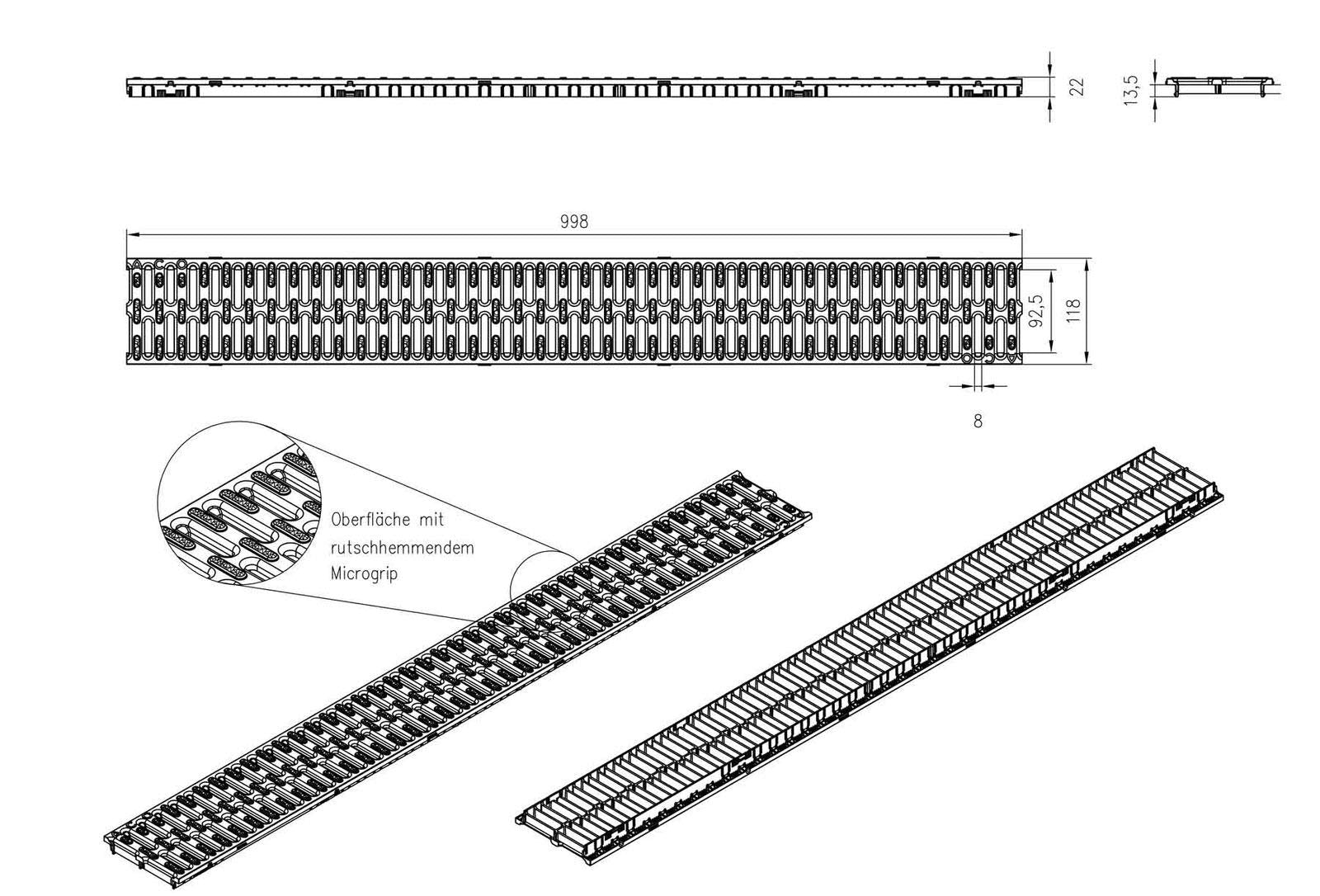

· Microgrip structure molded directly into the grate surface and therefore particularly durable
· Even under heavy use, the plastic grate retains its anti-slip properties
Benefits of Hexaline 2.0 channel with Microgrip slotted grating:
· many design options
· Affordable alternative from the market leader
· flexible system, easy installation
Length can be individually adapted to local conditions
Corner element for 90°, 180° and 270° connections

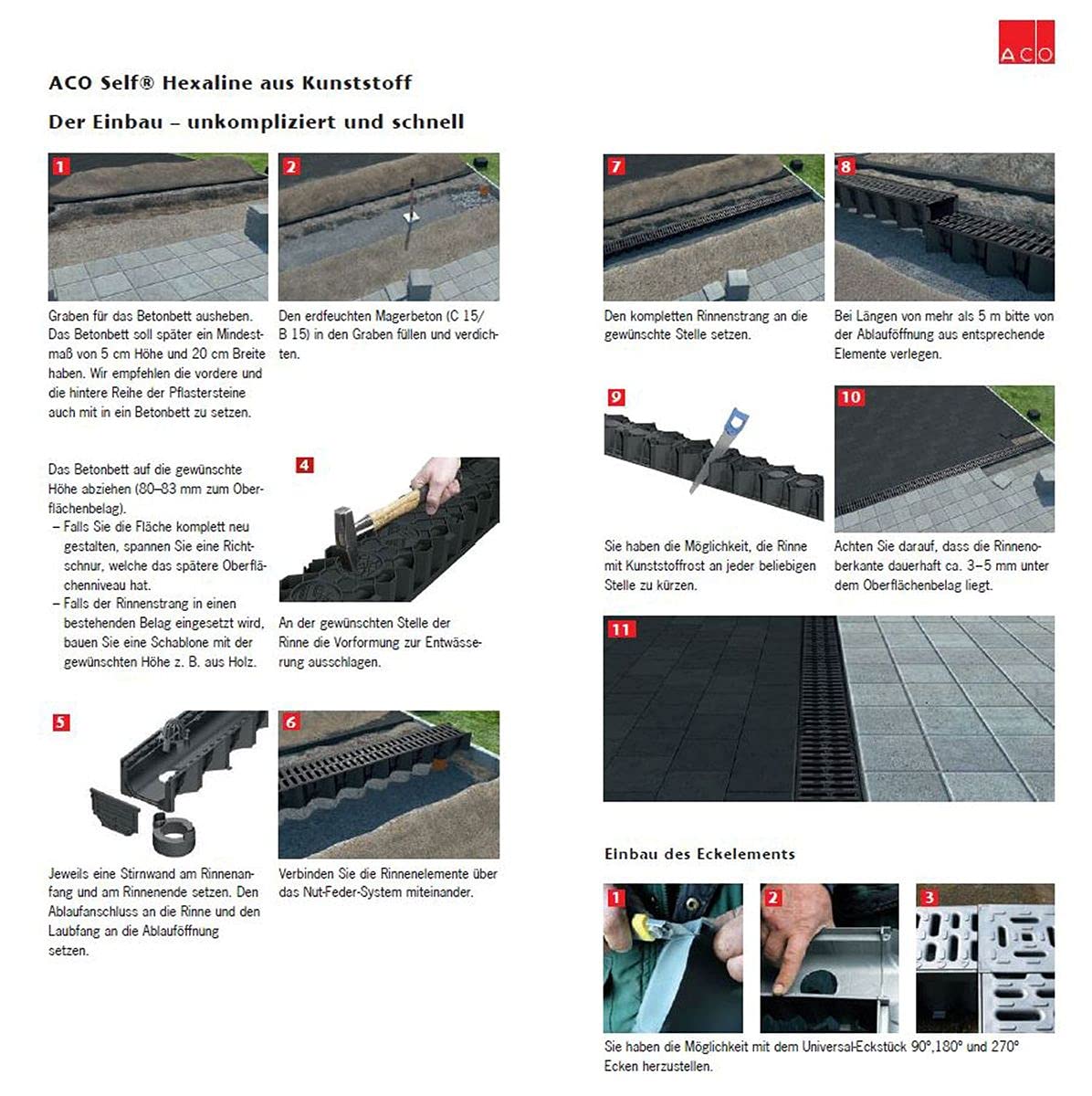

· Illustration for installation directly on the product
· Front wall (not included in delivery) can also be used with a shortened gutter
EAN: 4002626503206
Package dimensions: 39.6 x 5.1 x 3.1 inches
